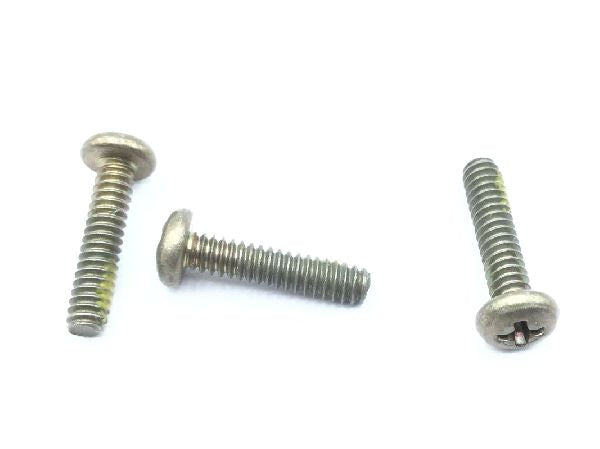

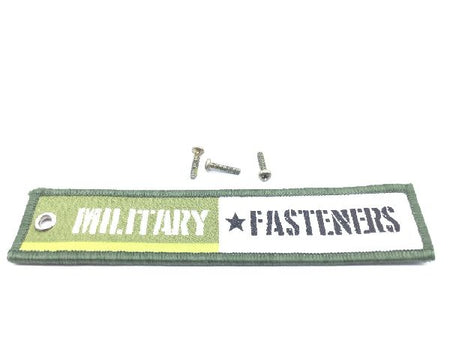

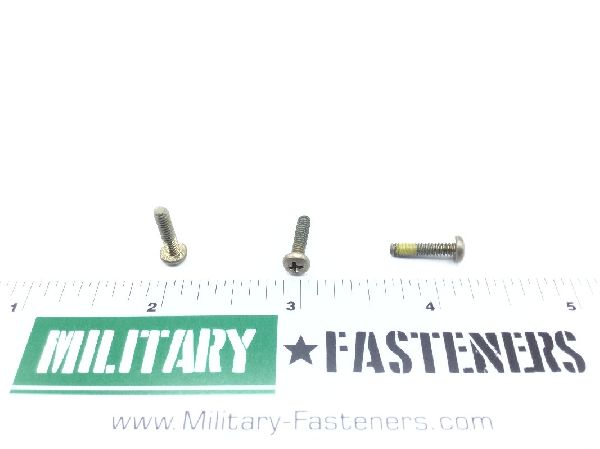

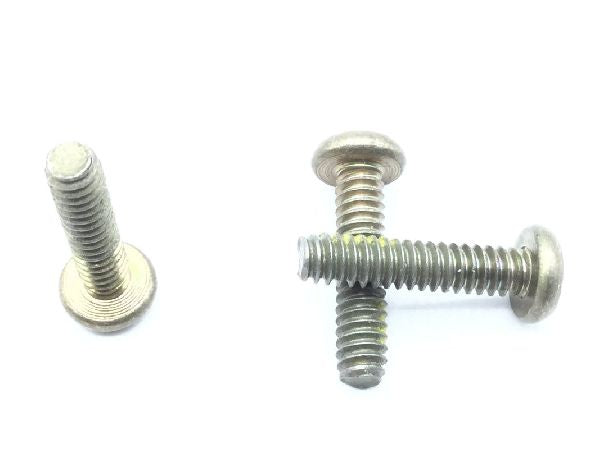

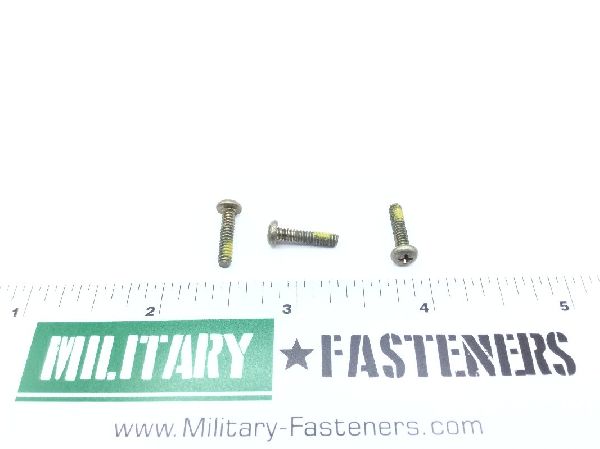

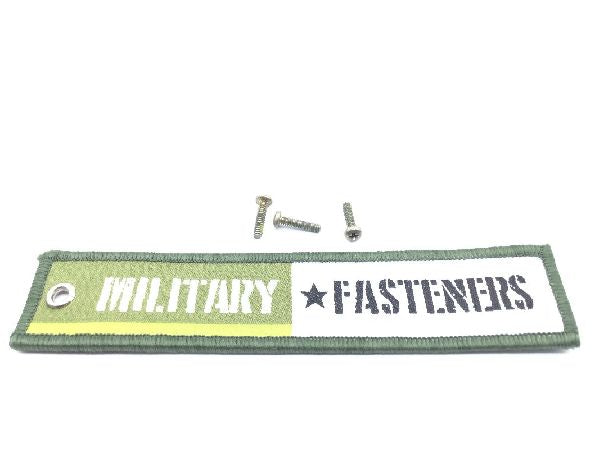

MS21090-0414 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.77

Units per Pack 50

Price per Pack $38.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $38.50

Add item to quote

Head Style

Pan

Material

Stainless Steel

Surface Treatment

Cl 3 federal specification all treatment responses type 2 qq-p-416

Thread Class

Departure From Cited Designator: Modified by locking element
Fastener Length: Between 0.469 inches and 0.500 inches
Head Height: Between 0.070 inches and 0.080 inches
Internal Drive Style: Cross recess type 1
Locking Feature: Pellet threads or strip threads or patch threads
Material Specification: 66 federal standard single material response
Nondefinitive Specification/std Data: 3 type and 9c style
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.419 inches and 0.500 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.205 inches and 0.219 inches
