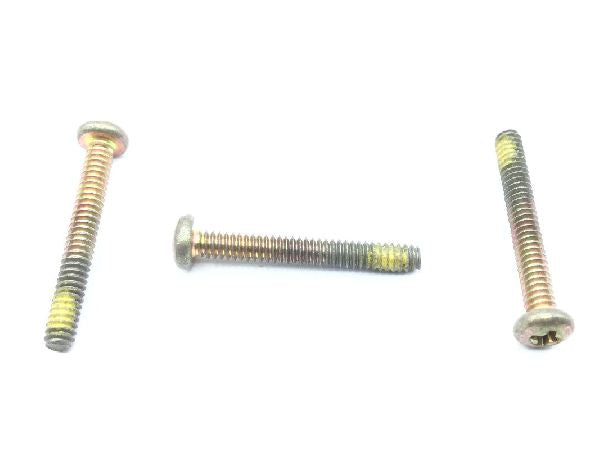

MS21090-0417 Socket Head Cap Screw

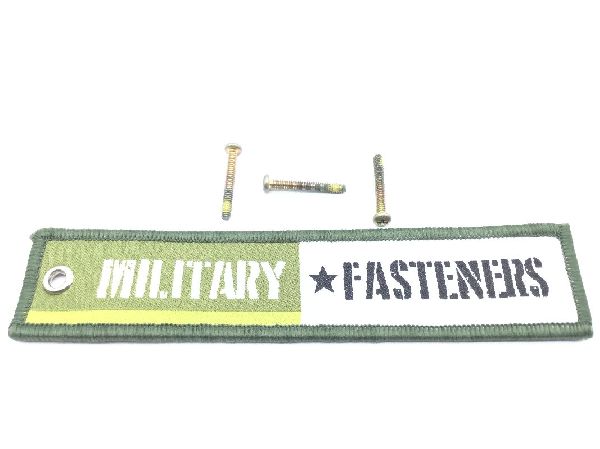

MS21090-0417 Socket Head Cap Screw (2)

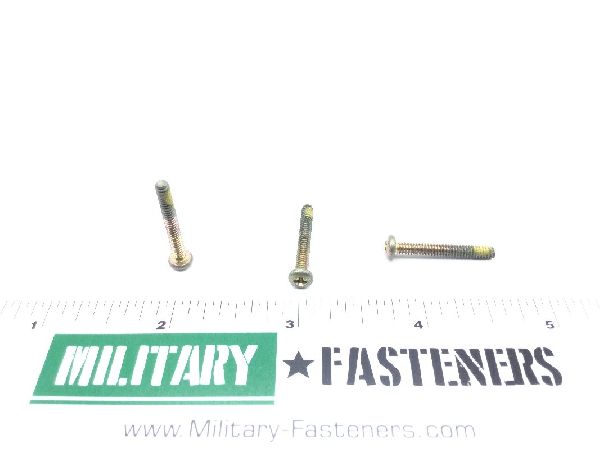

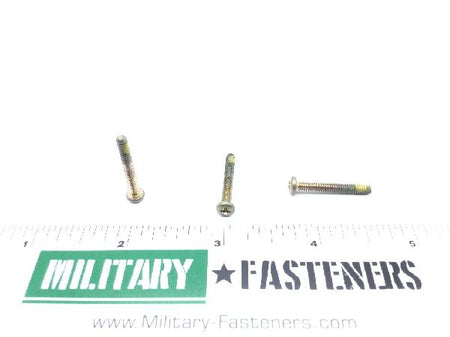

MS21090-0417 Socket Head Cap Screw (3)

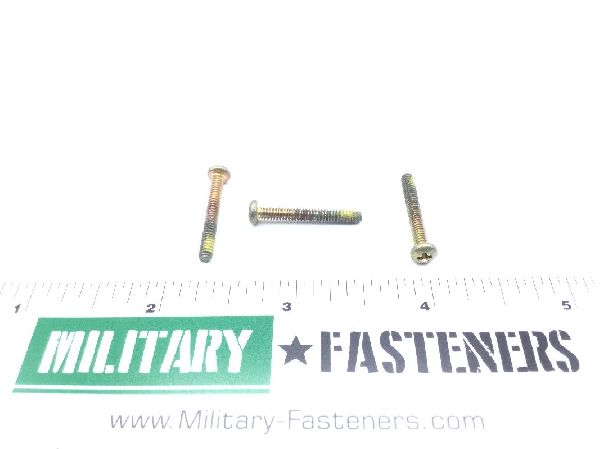

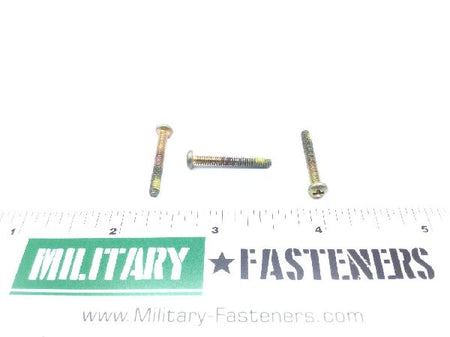

MS21090-0417 Socket Head Cap Screw (4)
MS21090-0417 Socket Head Cap Screw
MS21090-0417 Socket Head Cap Screw (2)
MS21090-0417 Socket Head Cap Screw (3)
MS21090-0417 Socket Head Cap Screw (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21090-0417 Socket Head Cap Screw

Product Series
MS
ECCN
EAR99
Schedule
7318.15.9000
Price per Unit $0.90
Units per Pack 50
Price per Pack $45.00
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:
Total Packs 1
Total Price $45.00
Add item to quote
Head Style
Pan
Material
Steel
Surface Treatment
Class 3 federal specification all treatment responses type 2 qq-p-416
Thread Class
2a
End Application
sh-60b lamps mark iii prowler ea-6b; helicopter intruder a-6e; aircraft f-16; aircraft hh-60j; aircraft uscg search and rescue hh-60h; helicopter search and rescue sh-60f; helicopter carrier based asw seahawk h-60; helicopter w/s: helicopt
Fastener Length
Between 0.844 inches and 0.875 inches
Head Height
Between 0.070 inches and 0.080 inches
Internal Drive Style
Cross recess type 1
Locking Feature
Patch threads or pellet threads or strip threads
Material Specification
Qq-s-637 federal specification single material response or 66 federal standard single material response
Min. Tensile Strength (psi)
60000 pounds per square inch
Nondefinitive Specification/std Data
3 type and 9c style
Thread Diameter
0.112 inches
Thread Direction
Right-hand
Thread Length
Between 0.794 inches and 0.875 inches
Thread Qty Per Inch (tpi)
40
Thread Series Designator
Unc (coarse thread)
Head Diameter
Between 0.205 inches and 0.219 inches
