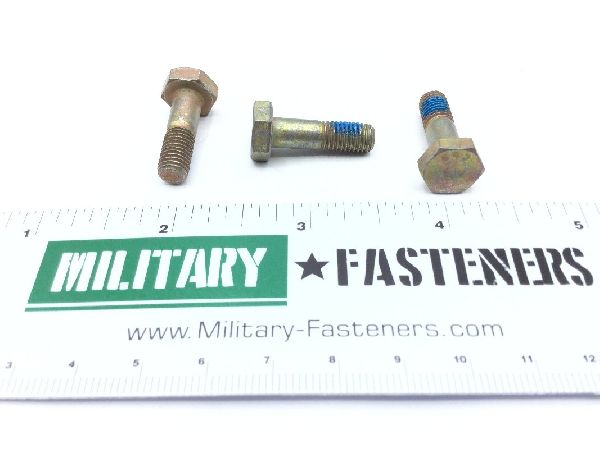

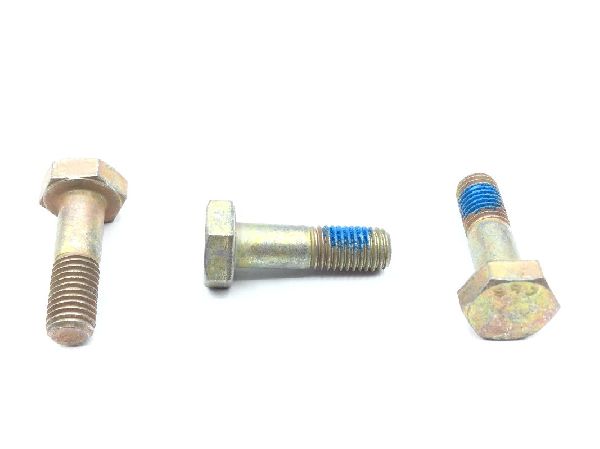

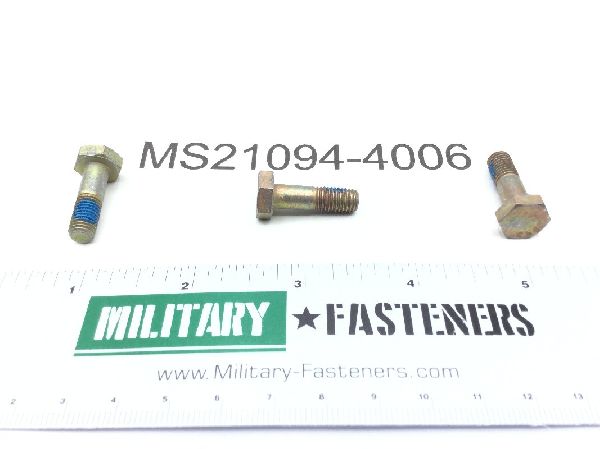

MS21094-4006 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Steel comp 4140 or steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4130 or steel comp 4037

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Quantity Per Inch (tpi)

Fastener Length: Between 0.829 inches and 0.875 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.365 inches and 0.385 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.14 inches and 0.172 inches
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.444 inches and 0.51 inches
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.428 inches and 0.44 inches
