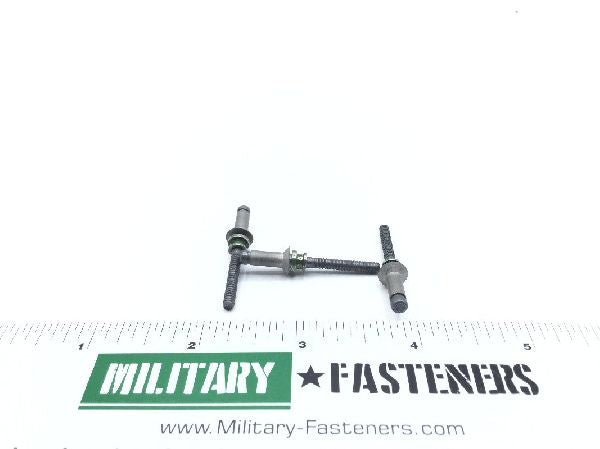

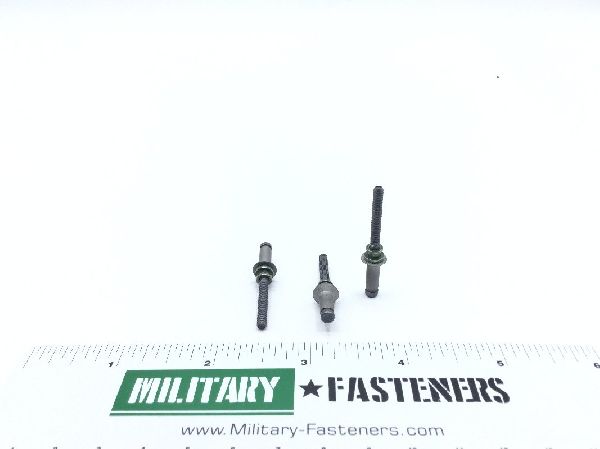

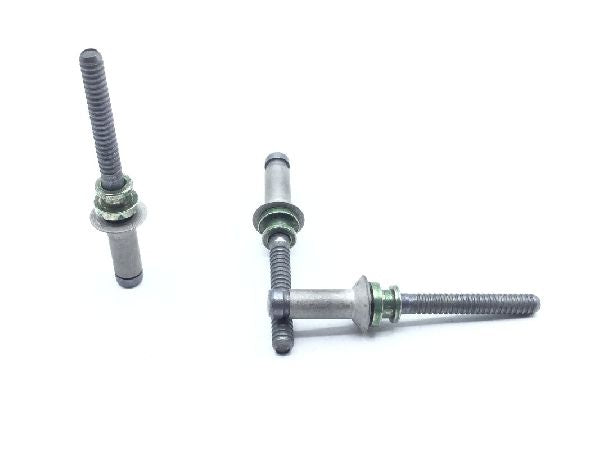

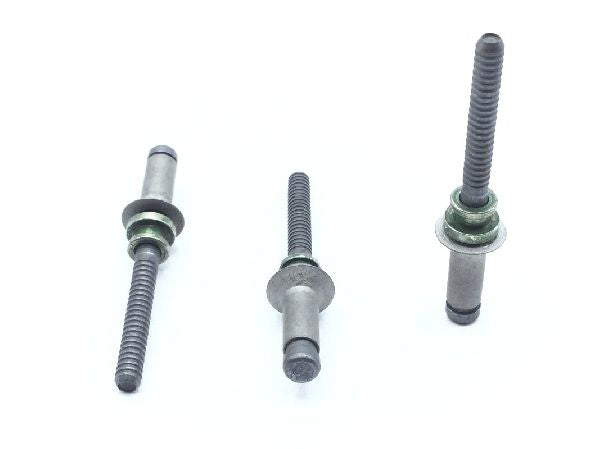

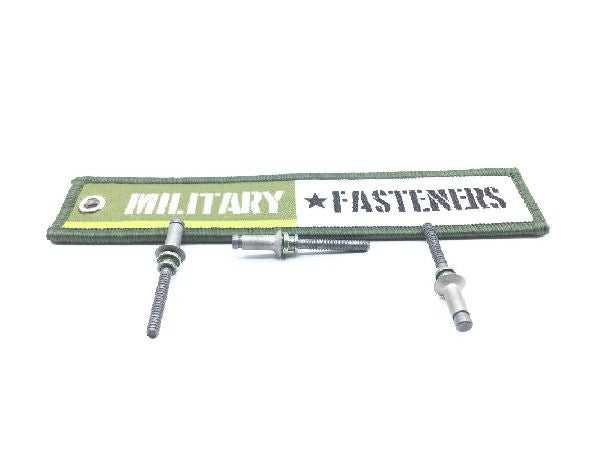

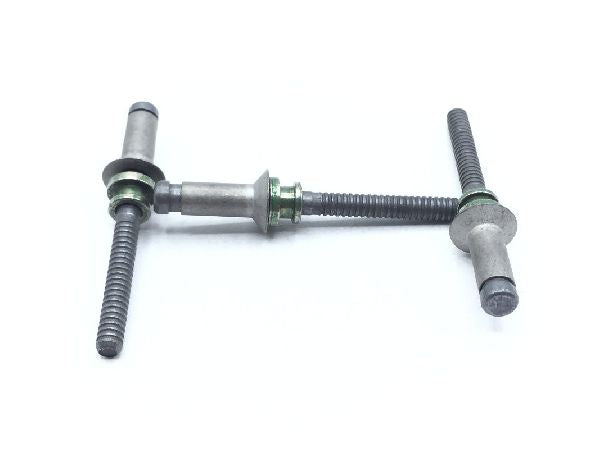

MS21140S0504 Blind Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7616.10.3000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Stainless Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Countersink Angle: Between 98.5 degrees and 101.5 degrees
Expansion Device: Serrated stem-type w
Fastener Length: 0.529 inches
Grip Length: Between 0.219 inches and 0.282 inches
Head Major Diameter: 0.354 inches
Material Specification: Ams5737 assn standard single material response
Min. Tensile Strength (psi): 1150 pounds per square inch
Shank Diameter: Between 0.162 inches and 0.164 inches
Shear Strength: 1980 single pounds per square inch
Specification Data: 96906-ms21140s0504 government standard
Lubrication: Dry film
