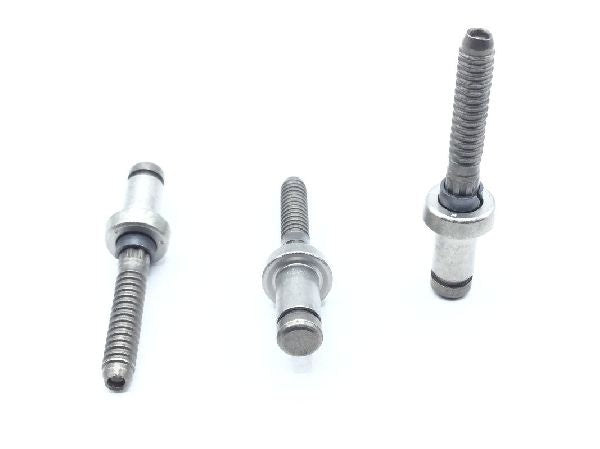

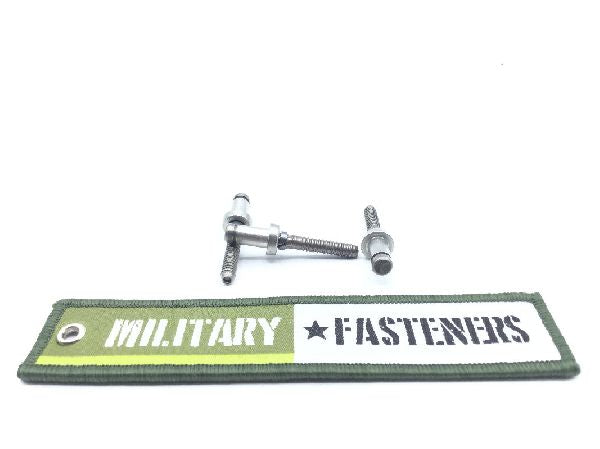

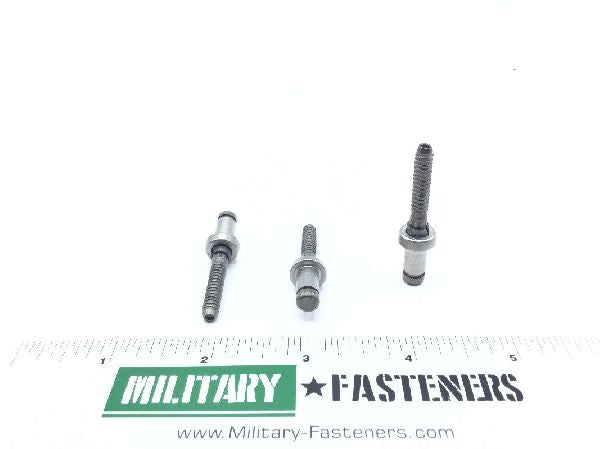

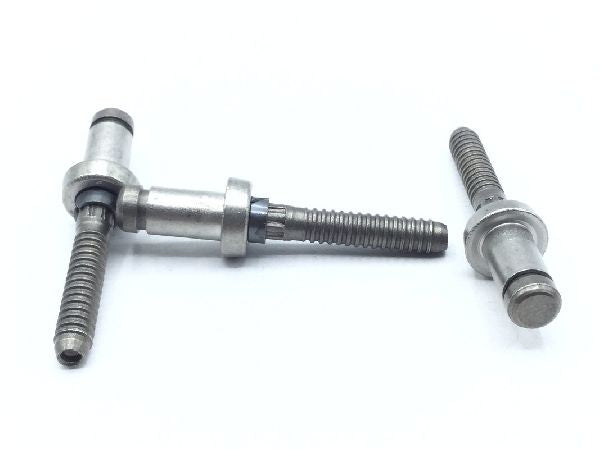

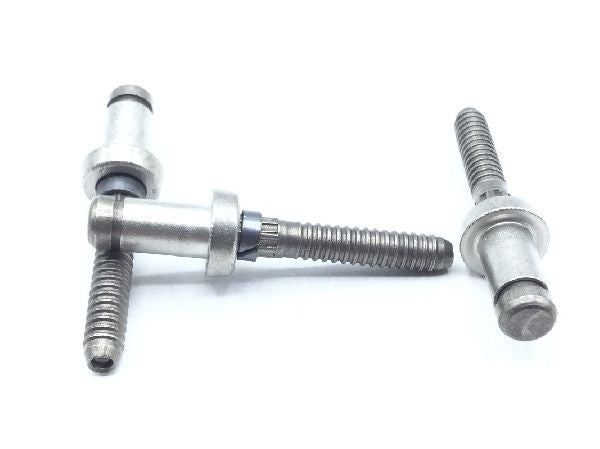

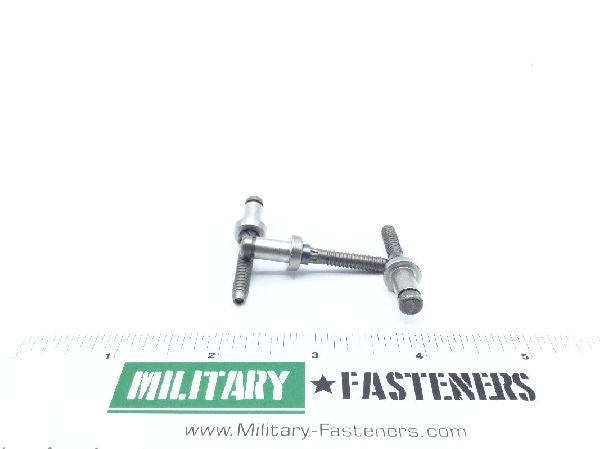

MS21141U0803 Blind Rivet

Product Series
MS
ECCN
EAR99
Schedule
7616.10.3000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Tapered pan
Material
Iron alloy 660
Surface Treatment
Qq-p-35 federal specification single treatment response
Expansion Device
Serrated stem-type w
Grip Length
Between 0.156 inches and 0.220 inches
Head Height
Between 0.130 inches and 0.140 inches
Head Major Diameter
Between 0.400 inches and 0.432 inches
Material Specification
Ams 5737 assn standard single material response
Shank Diameter
Between 0.258 inches and 0.260 inches
Shank Style
Self-plugging mechanically locked stem
Shear Strength
9500 single pounds per square inch
Special Features
Single action installion
Lubrication
Dry film
