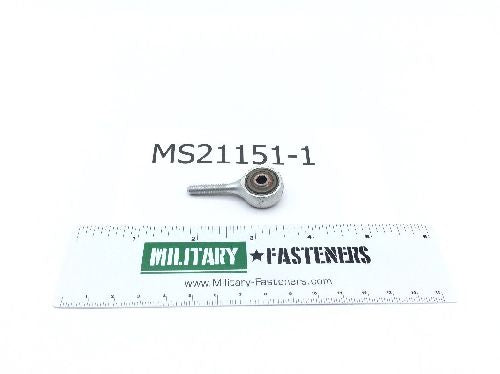

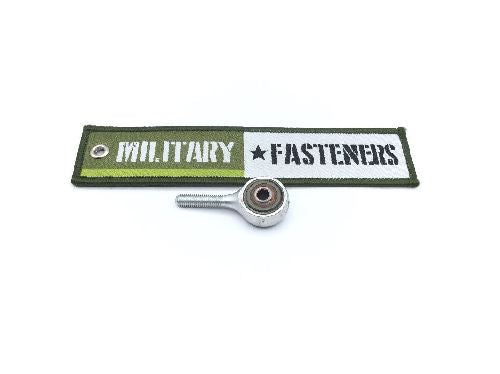

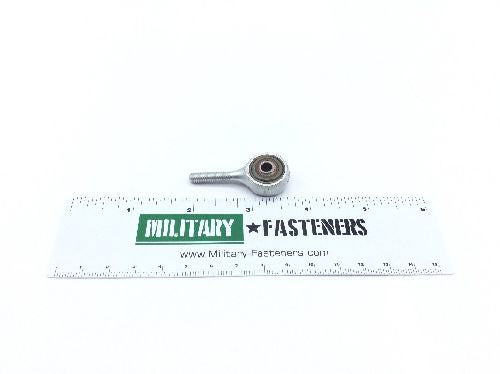

MS21151-1 Rod End Bearing
- Product Series
- MS
- ECCN
- EAR99
- Schedule
- 8483.30.8090
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Alignment Type
- Self-aligning
- Bearing Seal Type
- Contact
- Bore Diameter
- Between 0.1897 inches and 0.1900 inches
- Inner Ring Width
- Between 0.4320 inches and 0.4370 inches
- Length From Bore Center To Shank End
- Between 1.3650 inches and 1.3850 inches
- Lubrication Material
- Grease
- Lubrication Material Specification
- Mil-g-81322 military specification single material response
- Material Specification
- Mil-s-7420 military specification single material response inner ring
- Outer Ring Width
- Between 0.3180 inches and 0.3380 inches
- Overall Outside Diameter
- Between 0.7710 inches and 0.7910 inches
- Seal Quantity
- 2
- Self-alignment Angle
- 10.00 degrees
- Self-alignment Location
- Internal
- Shank Diameter
- 0.1900 inches
- Shank Style
- Externally threaded
- Shank Thread Length
- Between 0.7190 inches and 0.7810 inches
- Special Features
- Shank 63 microinches aa; voids filled 80 pct min with specified lubricant tstabilized for operation at 250 degrees fahrenheit; rockwell hardness c scale 60 to 66 rings and balls; max surface finish raceways an balls 8 microinches aa
- Style Designator
- ball staggered double row
- Thread Direction
- Left-hand
- Thread Qty Per Inch (tpi)
- 32
- Thread Series Designator
- Unjf (fine thread with external controlled root radius)
