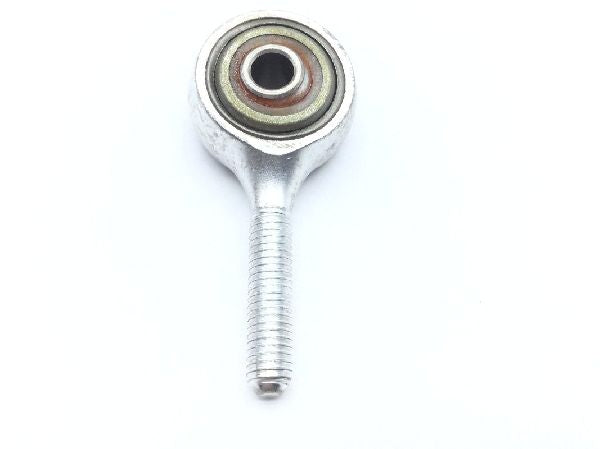

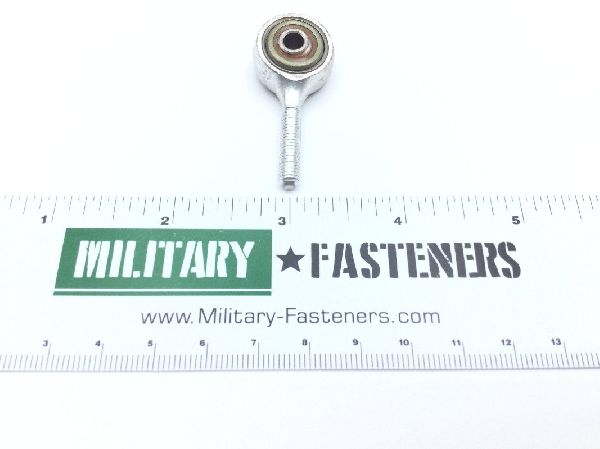

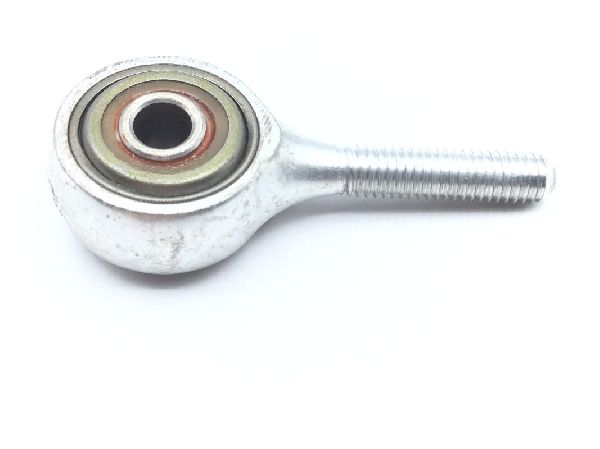

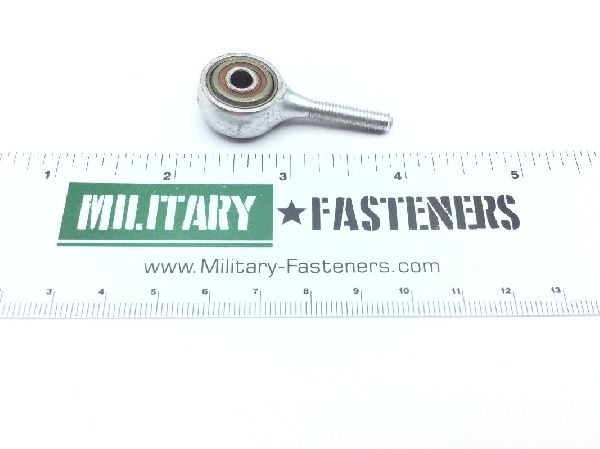

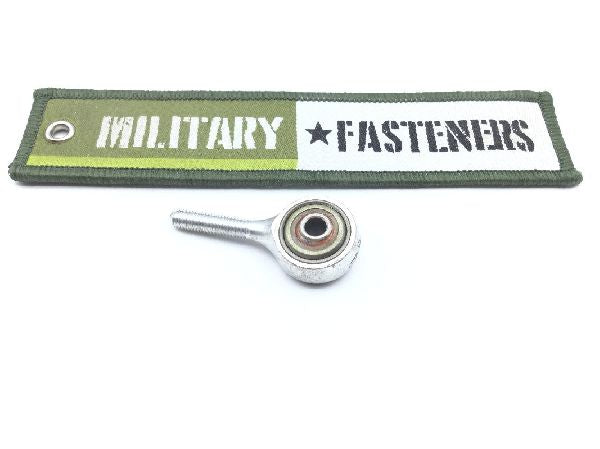

MS21151-2 Rod End Bearing

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.5030

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Plastic polytetrafluoroethylene seal

Overall Length

Between 1.7505 inches and 1.7805 inches

Thread Class

Alignment Type: Self-aligning
Bearing Seal Type: Contact
Bore Diameter: Between 0.1897 inches and 0.1900 inches
Inner Ring Width: Between 0.4320 inches and 0.4370 inches
Length From Bore Center To Shank End: Between 1.3650 inches and 1.3850 inches
Lubrication Material: Grease
Lubrication Material Specification: Mil-g-81322 military specification single material response
Material Specification: Mil-s-7420 military specification single material response inner ring
Outer Ring Width: Between 0.3180 inches and 0.3380 inches
Overall Outside Diameter: Between 0.7710 inches and 0.7910 inches
Seal Quantity: 2
Self-alignment Location: Internal
Shank Diameter: 0.1900 inches
Shank Style: Externally threaded
Shank Thread Length: Between 0.7190 inches and 0.7810 inches
Style Designator: ball staggered double row
Thread Direction: Right-hand
