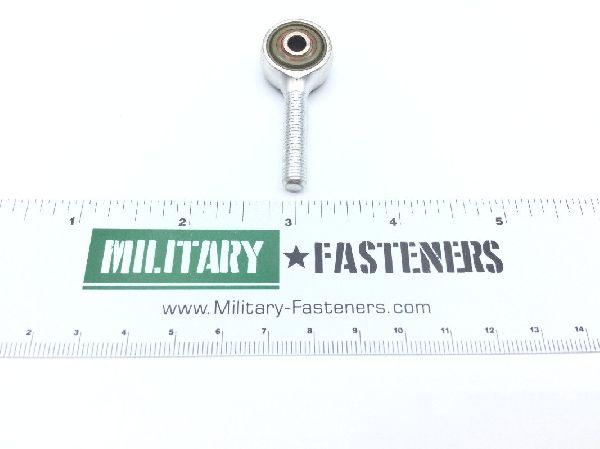

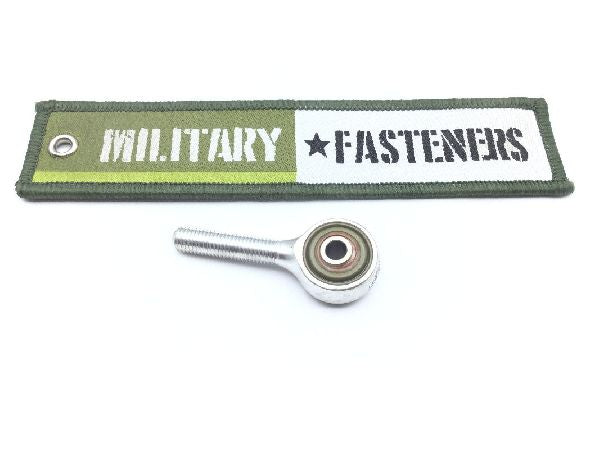

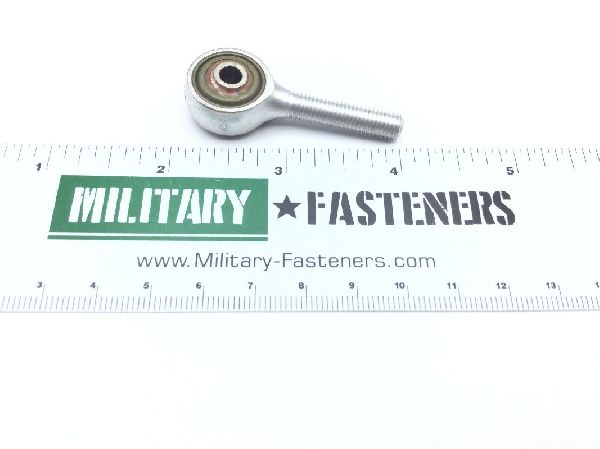

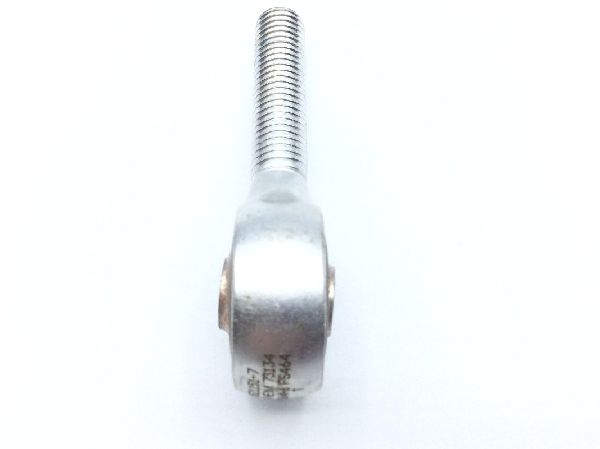

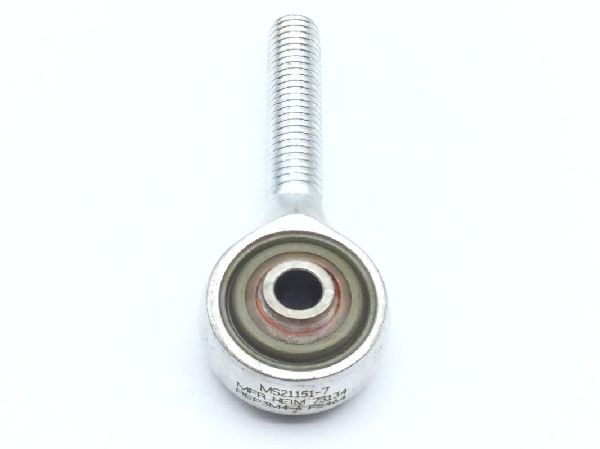

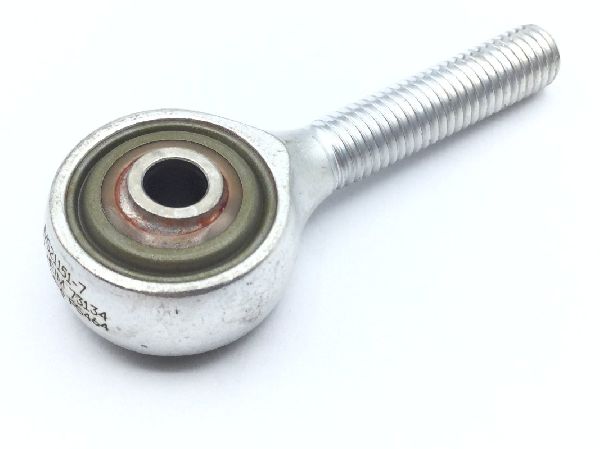

MS21151-7 Rod End Bearing

Product Series: MS
ECCN: EAR99
Schedule: 8483.30.8090

Price per Unit $121.80

Units per Pack 1

Price per Pack $121.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $121.80

Add item to quote

Material

Steel

Overall Length

Between 1.9385 inches and 1.9685 inches

Surface Treatment

Cl 2 federal specification single treatment response rod end body type 1 qq-p-416

Thread Class

Thread Size

0.250 inches

Alignment Type: Self-aligning
Bearing Seal Type: Contact
Bore Diameter: Between 0.1897 inches and 0.19 inches
Inner Ring Width: Between 0.432 inches and 0.437 inches
Length From Bore Center To Shank End: Between 1.553 inches and 1.573 inches
Lubrication Material: Grease
Lubrication Material Specification: Mil-g-81322 military specification single material response
Material Specification: Ams 3652 assn standard single material response seal or ams 3666 assn standard single material response seal
Outer Ring Width: Between 0.3180 inches and 0.3380 inches
Overall Outside Diameter: Between 0.771 inches and 0.791 inches
Seal Quantity: 2
Self-alignment Angle: 10.00 degrees
Self-alignment Location: Internal
Shank Diameter: 0.2500 inches
Shank Style: Externally threaded
Shank Thread Length: Between 0.969 inches and 1.031 inches
Style Designator: ball staggered double row
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
