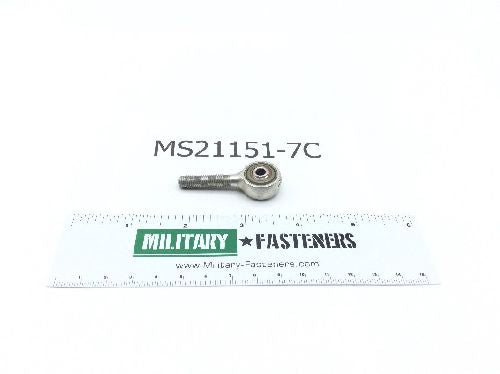

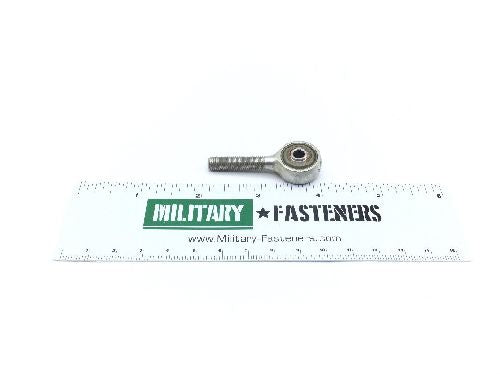

MS21151-7C Rod End Bearing

Product Series: MS
ECCN: EAR99
Schedule: 8483.30.8090

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 4130 rod end body

Overall Length

Between 2.3540 inches and 2.3640 inches

Surface Treatment

Cl 2 federal specification single treatment response all external/exposed metal surfaces type 1 qq-p-416

Thread Class

Thread Size

0.250 inches

Alignment Type: Self-aligning
Bearing Seal Type: Contact
Bore Diameter: Between 0.1897 inches and 0.19 inches
Inner Ring Width: Between 0.432 inches and 0.437 inches
Length From Bore Center To Shank End: Between 1.553 inches and 1.573 inches
Lubrication Material: Grease
Lubrication Material Specification: Mil-g-81322 military specification single material response
Material Specification: Ams 3652 assn standard single material response seal
Outer Ring Width: Between 0.3180 inches and 0.3380 inches
Overall Outside Diameter: Between 0.7710 inches and 0.7910 inches
Seal Quantity: 2
Self-alignment Angle: 10.00 degrees
Self-alignment Location: External
Shank Diameter: 0.2500 inches
Shank Style: Externally threaded
Shank Thread Length: Between 0.9690 inches and 1.0310 inches
Special Features: Nas513 keyway slot filled with 80 pct of specified lubricant
Style Designator: ball staggered double row
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
