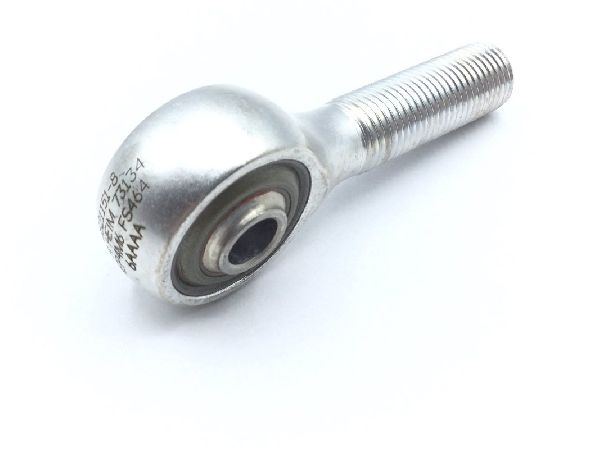

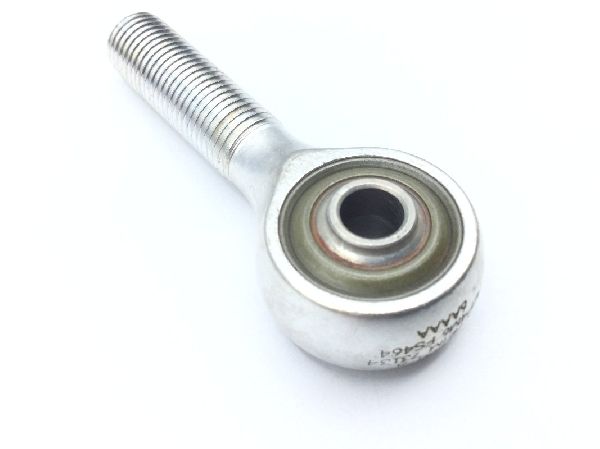

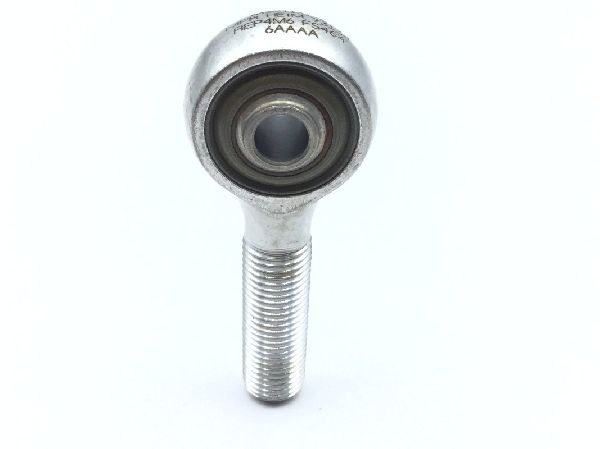

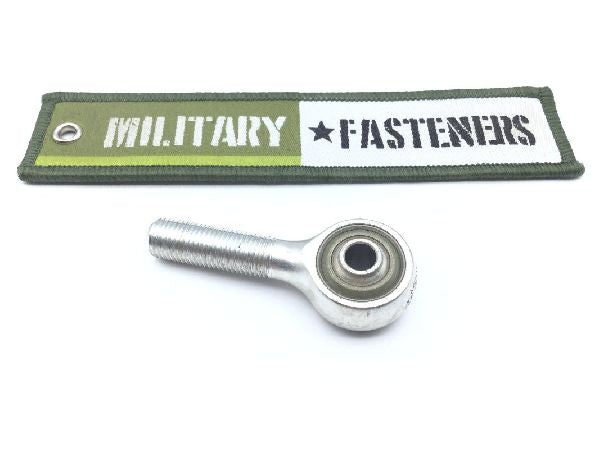

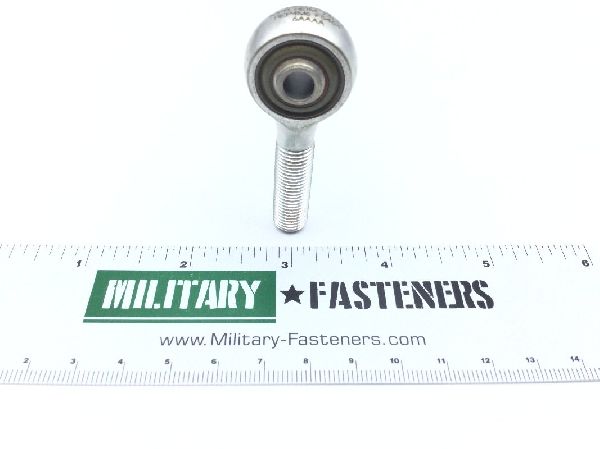

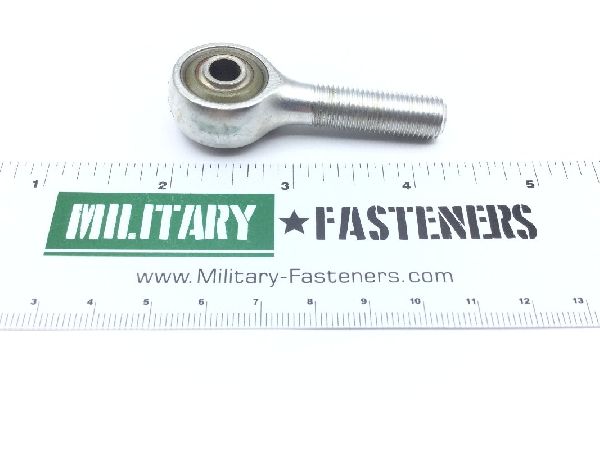

MS21151-8 Rod End Bearing

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.5030

Price per Unit $116.35

Units per Pack 1

Price per Pack $116.35

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $116.35

Add item to quote

Material

Steel comp 4130 shaft

Overall Length

Between 2.3290 inches and 2.3590 inches

Surface Treatment

Class 2 federal specification single treatment response rod end body type 1 qq-p-416

Thread Class

Thread Size

0.375 inches

Alignment Type: Self-aligning
Bearing Seal Type: Contact
Bore Diameter: Between 0.2497 inches and 0.25 inches
Inner Ring Width: Between 0.588 inches and 0.593 inches
Length From Bore Center To Shank End: Between 1.865 inches and 1.885 inches
Lubrication Material: Grease
Lubrication Material Specification: Mil-g-81322 military specification single material response
Material Specification: Ams 3652 assn standard single material response seal or ams 3666 assn standard single material response seal
Outer Ring Width: Between 0.4280 inches and 0.4480 inches
Overall Outside Diameter: Between 0.9280 inches and 0.9480 inches
Seal Quantity: 2
Self-alignment Angle: 10 degrees
Self-alignment Location: Internal
Shank Diameter: 0.375 inches
Shank Style: Externally threaded
Shank Thread Length: Between 1.0940 inches and 1.1560 inches
Style Designator: Ball staggered double row
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
