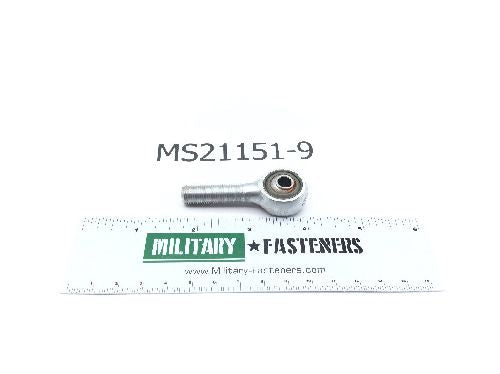

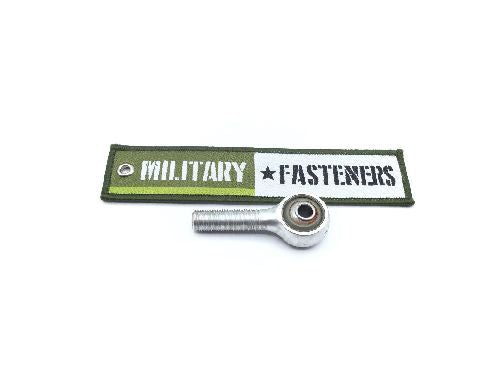

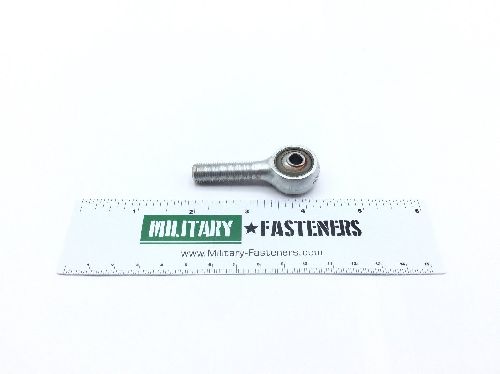

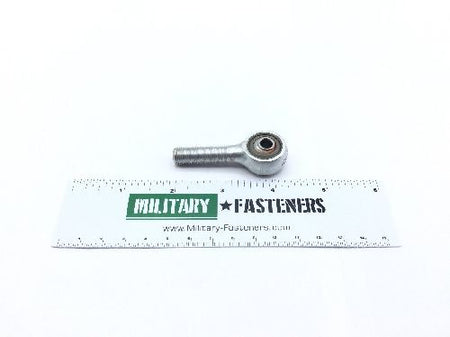

MS21151-9 Rod End Bearing

Product Series: MS
ECCN: EAR99
Schedule: 8483.30.8090

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Plastic

Overall Length

Between 2.3290 inches and 2.3590 inches

Surface Treatment

Cl 2 federal specification single treatment response outer ring type 1 qq-p-416

Thread Class

Thread Size

0.375 inches

Alignment Type: Self-aligning
Bearing Seal Type: Contact
Bore Diameter: Between 0.2497 inches and 0.2500 inches
Inner Ring Width: Between 0.5880 inches and 0.5930 inches
Length From Bore Center To Shank End: Between 1.8650 inches and 1.8850 inches
Lubrication Material: Grease
Lubrication Material Specification: Mil-g-81322 military specification single material response
Material Specification: Mil-s-7420 military specification single material response ball
Outer Ring Width: Between 0.4280 inches and 0.4480 inches
Overall Outside Diameter: Between 0.9280 inches and 0.9480 inches
Seal Quantity: 2
Self-alignment Angle: 10.00 degrees
Self-alignment Location: Internal
Shank Diameter: 0.3750 inches
Shank Style: Externally threaded
Shank Thread Length: Between 1.0940 inches and 1.1560 inches
Style Designator: ball staggered double row
Thread Direction: Left-hand
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
