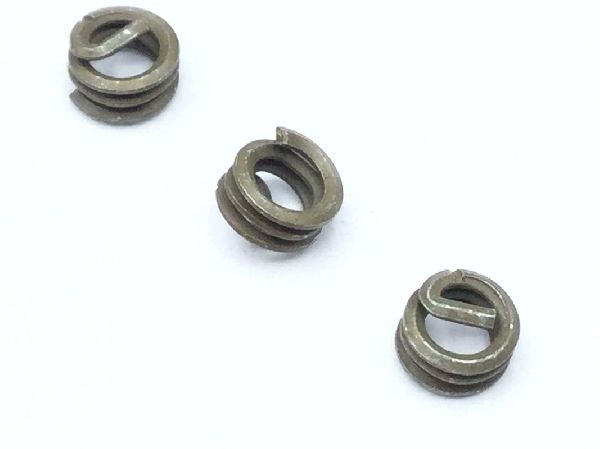

MS21209C04-10P Screw Thread Insert

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $1.50

Units per Pack 25

Price per Pack $37.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $37.50

Add item to quote

Material

Steel

Surface Treatment

Qq-p-416 federal specification single treatment response

Thread Class

3b

Thread Size

0.112 inches

Insert Size: 0.159 in. max free od 0.144 in. min
Length: 0.112 inches
Material Specification: Fed standard 66 federal standard single material response or mil-i-8846 military specification single material response
Special Features: Plating 0.0001 in. max thk
Style Designator: Coil
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
