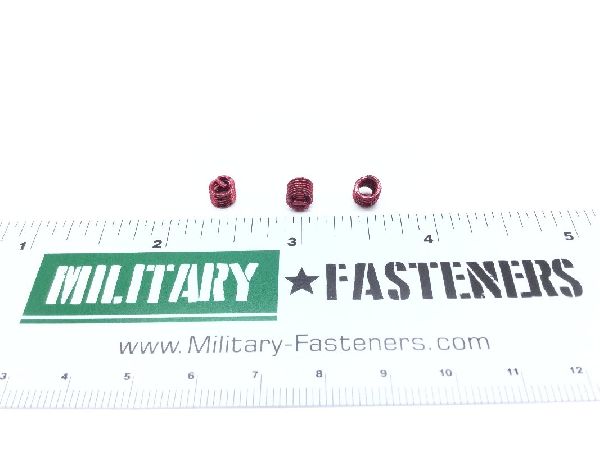

MS21209C08-15 Screw Thread Insert

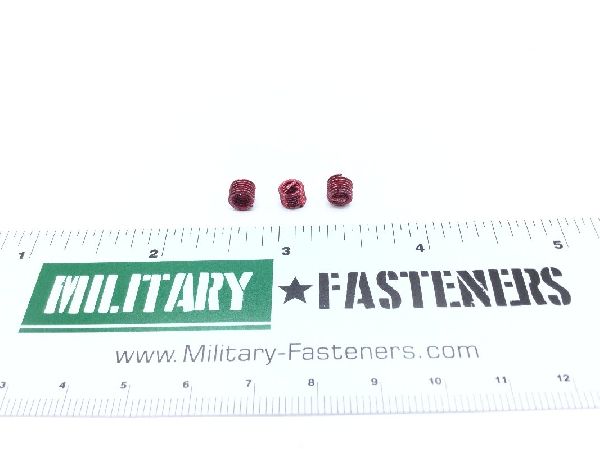

MS21209C08-15 Screw Thread Insert (2)

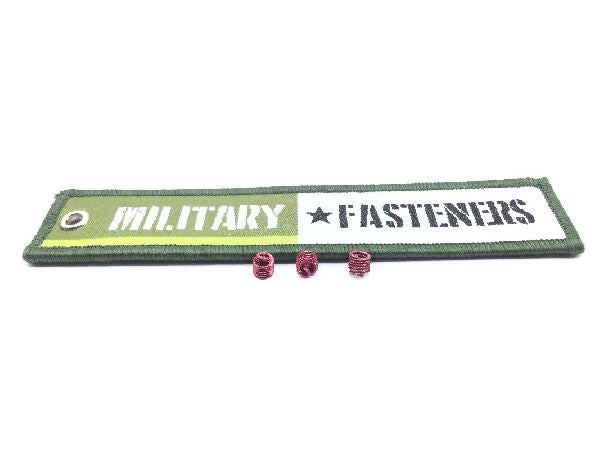

MS21209C08-15 Screw Thread Insert (3)

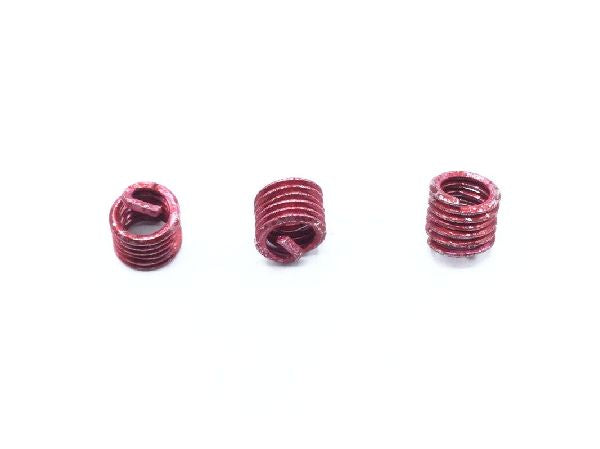

MS21209C08-15 Screw Thread Insert (4)

MS21209C08-15 Screw Thread Insert (5)

MS21209C08-15 Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21209C08-15 Screw Thread Insert

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $0.84

Units per Pack 50

Price per Pack $42.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $42.00

Add item to quote

Material

Stainless Steel

Thread Class

3b

Thread Size

0.164 inches

Insert Size: 0.220 in max 0.205 in min
Length: 0.246 inches
Style Designator: Coil
Thread Direction: Right Hand
Thread Length: 0.246 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
