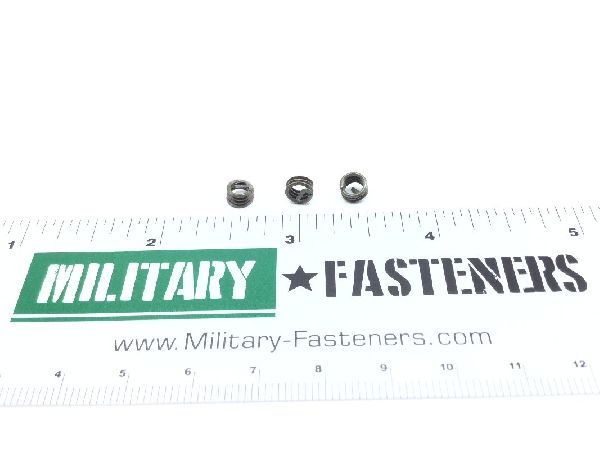

MS21209C0810P Screw Thread Insert

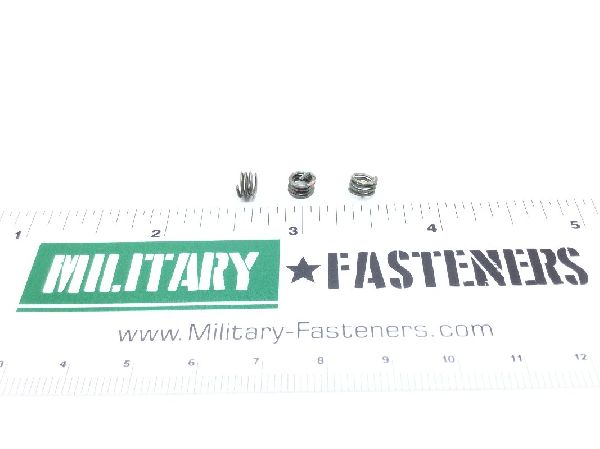

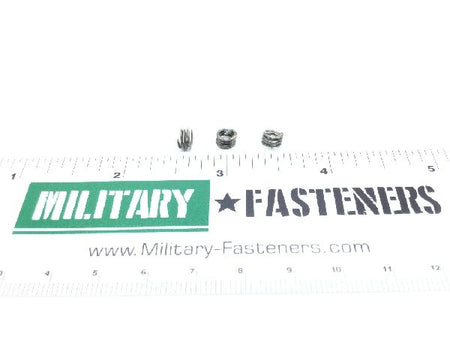

MS21209C0810P Screw Thread Insert (2)

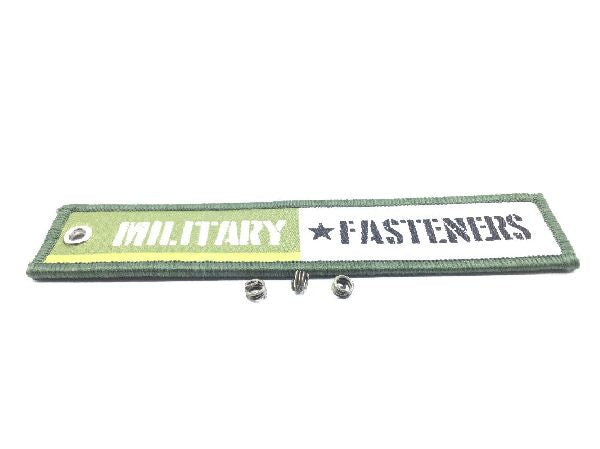

MS21209C0810P Screw Thread Insert (3)
MS21209C0810P Screw Thread Insert (4)
MS21209C0810P Screw Thread Insert (5)

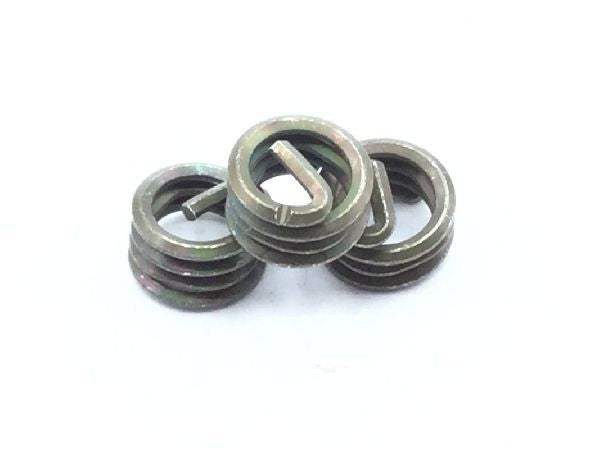

MS21209C0810P Screw Thread Insert (6)
MS21209C0810P Screw Thread Insert
MS21209C0810P Screw Thread Insert (2)
MS21209C0810P Screw Thread Insert (3)
MS21209C0810P Screw Thread Insert (4)
MS21209C0810P Screw Thread Insert (5)
MS21209C0810P Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21209C0810P Screw Thread Insert

Product Series
MS
ECCN
EAR99
Schedule
7318.16.0085
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Stainless Steel
Surface Treatment
Qq-p-416 federal specification single treatment response
Thread Class
2b
Thread Size
0.164 inches
Insert Size
0.205 in. min 0.220 in. max
Length
0.164 inches
Style Designator
Coil
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unc (coarse thread)
