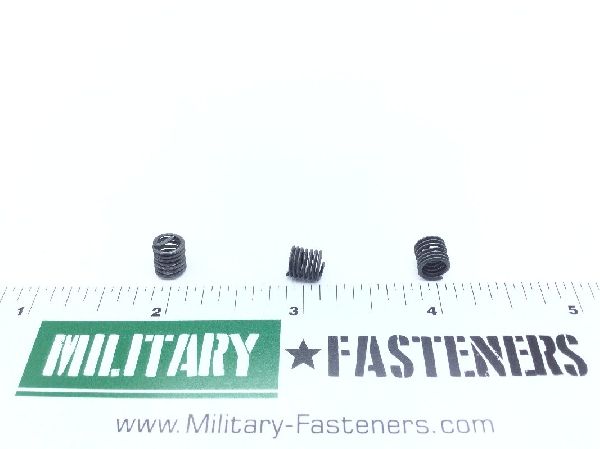

MS21209F1-15L Screw Thread Insert

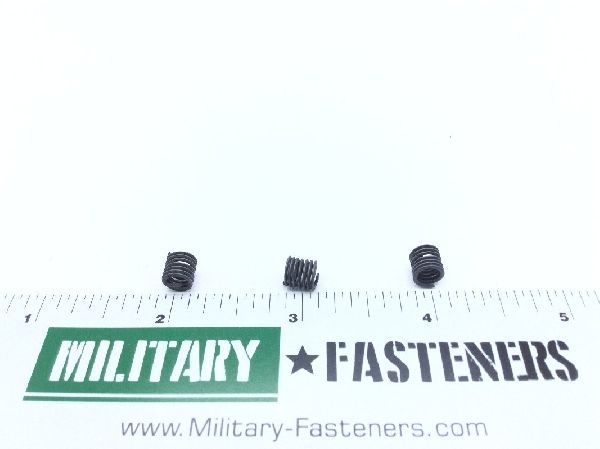

MS21209F1-15L Screw Thread Insert (2)

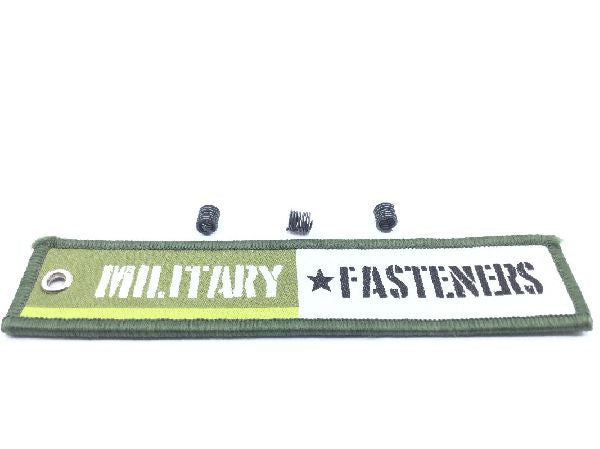

MS21209F1-15L Screw Thread Insert (3)

MS21209F1-15L Screw Thread Insert (4)

MS21209F1-15L Screw Thread Insert (5)

MS21209F1-15L Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21209F1-15L Screw Thread Insert

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $0.35

Units per Pack 100

Price per Pack $35.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $35.00

Add item to quote

Material

Steel

Thread Class

3b

Thread Size

0.190 inches

Insert Size: 0.236 in. min 0.256 in. max free od
Length: 0.285 inches
Material Specification: Fed standard 66 federal standard single material response
Style Designator: Coil
Thread: 48488
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
