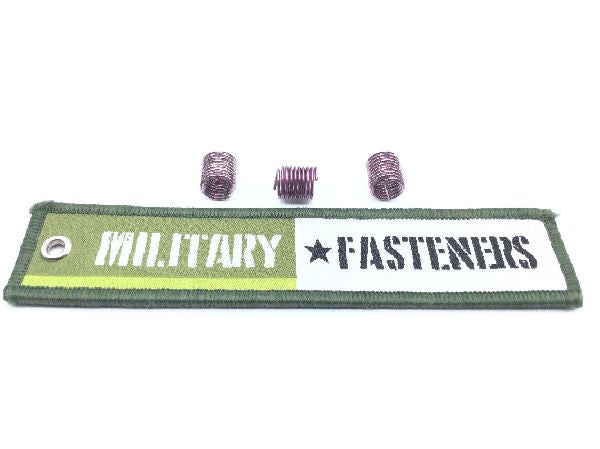

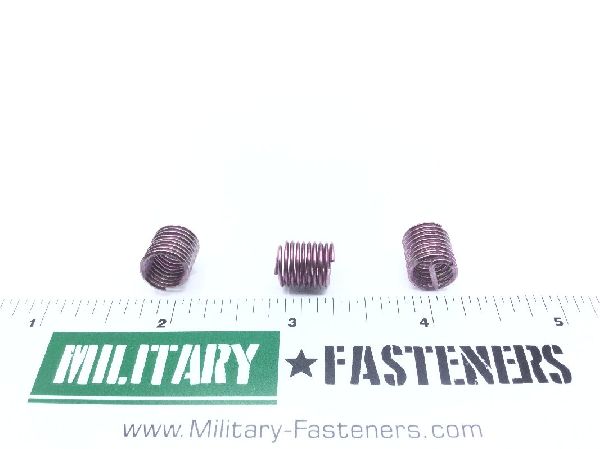

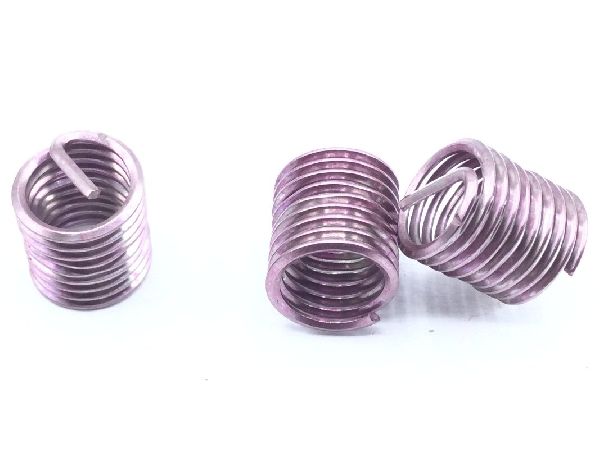

MS21209F5-15 Screw Thread Insert

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $1.34

Units per Pack 25

Price per Pack $33.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $33.50

Add item to quote

Material

Stainless Steel

Thread Class

3b

Thread Size

0.312 inches

Criticality Code Justification: Supp
Insert Size: 0.400 in. max od 0.380 in. min
Length: 0.469 inches
Special Features: Staggered coils' grip location;bare inserts dyed red
Style Designator: Coil
Supplementary Features: Fit restriction or application item does not have a nuclear hardened feature but does have other critical features such as tolerance
Thread Direction: Right-hand
Thread Length: 0.469 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
