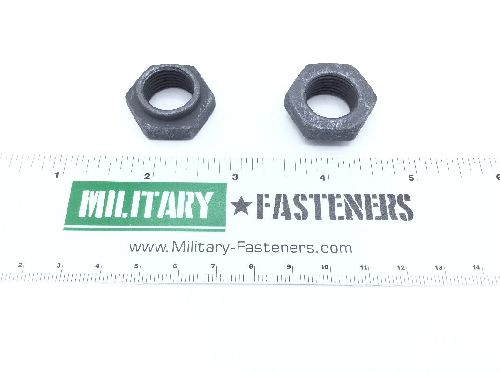

MS21245L10 Self-Locking Hexagon Nut

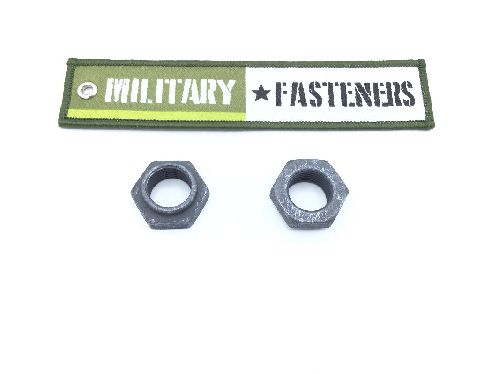

MS21245L10 Self-Locking Hexagon Nut (2)

MS21245L10 Self-Locking Hexagon Nut (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21245L10 Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 1 qq-p-416

Thread Class

3b

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.625 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered or washer faced
Hardness Rating: 46.0 rockwell c
Locking Feature: Prevailing torque all metal design
Nut Height: 0.407 inches
Nut Style: Hexagon
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 18
Width Across Flats: Between 0.928 inches and 0.940 inches
Lubrication: Dry film lubricant
