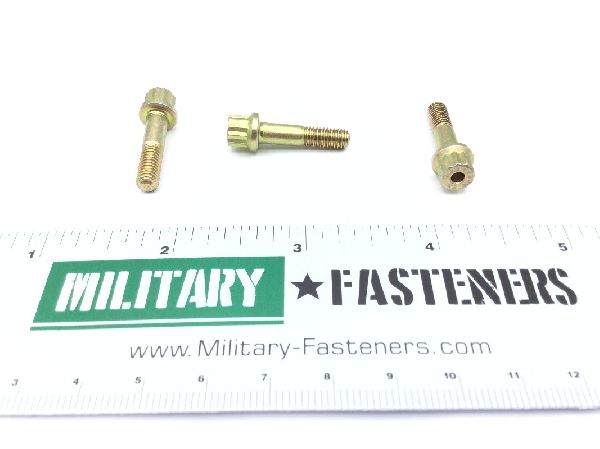

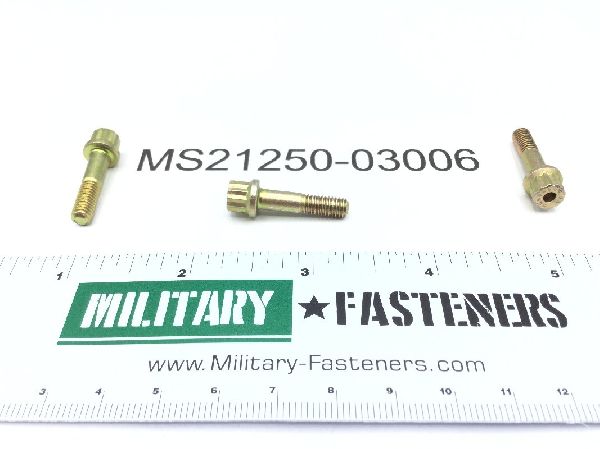

MS21250-03006 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $6.93

Units per Pack 10

Price per Pack $69.30

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $69.30

Add item to quote

Head Style

Double hexagon

Material

Steel

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Extended Washer Diameter: Between 0.34 inches and 0.36 inches
Extended Washer Thickness: Between 0.045 inches and 0.065 inches
Fastener Length: Between 0.805 inches and 0.825 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 0.365 inches and 0.385 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: Between 0.255 inches and 0.275 inches
Min. Tensile Strength (psi): 180000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.420 inches and 0.460 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.240 inches and 0.260 inches
