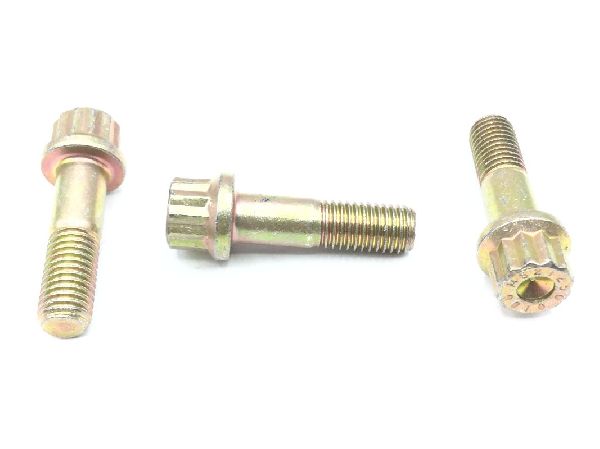

MS21250-04006 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $4.16

Units per Pack 10

Price per Pack $41.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $41.60

Add item to quote

Head Style

Double hexagon with hole

Material

Steel

Surface Treatment

Qq-p-416 type 2 cl 2 federal specification all treatment responses

Thread Class

Extended Washer Diameter: Between 0.428 inches and 0.438 inches
Extended Washer Thickness: 0.069 inches
Fastener Length: 0.887 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: Between 0.365 inches and 0.385 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.300 inches
Min. Tensile Strength (psi): 180000 pounds per square inch
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.502 inches and 0.522 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.304 inches and 0.313 inches
