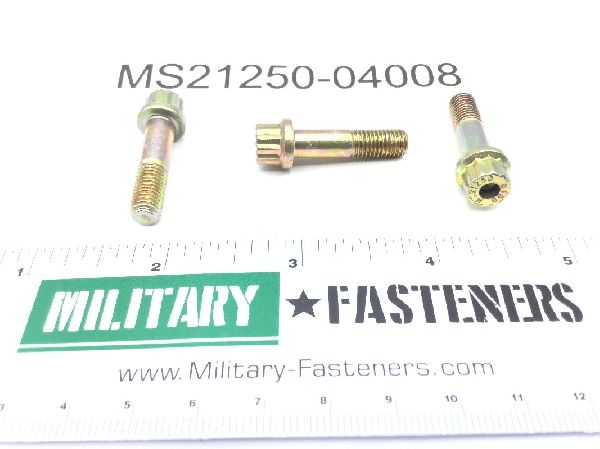

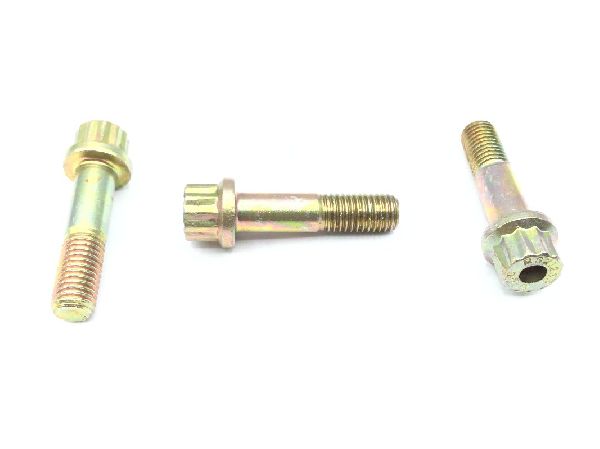

MS21250-04008 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $5.47

Units per Pack 10

Price per Pack $54.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $54.70

Add item to quote

Head Style

Double hexagon w/hole

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740

Surface Treatment

Class 2 federal specification single treatment response qq-p-416 ty2

Thread Class

Extended Washer Diameter: Between 0.428 inches and 0.438 inches
Extended Washer Thickness: Between 0.059 inches and 0.079 inches
Fastener Length: Between 1.002 inches and 1.022 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: Between 0.490 inches and 0.510 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: Between 0.290 inches and 0.310 inches
Min. Tensile Strength (psi): 180000 pounds per square inch
Single Shear Strength: 108000 pounds per square inch
Thread Diameter: 0.25 inches
Thread Direction: Right-hand
Thread Length: Between 0.492 inches and 0.532 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.304 inches and 0.313 inches
