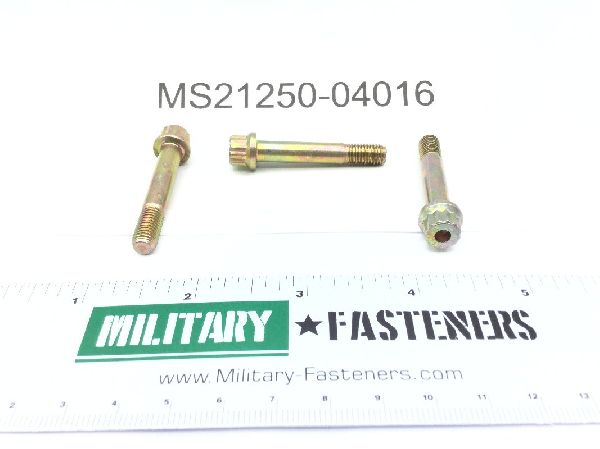

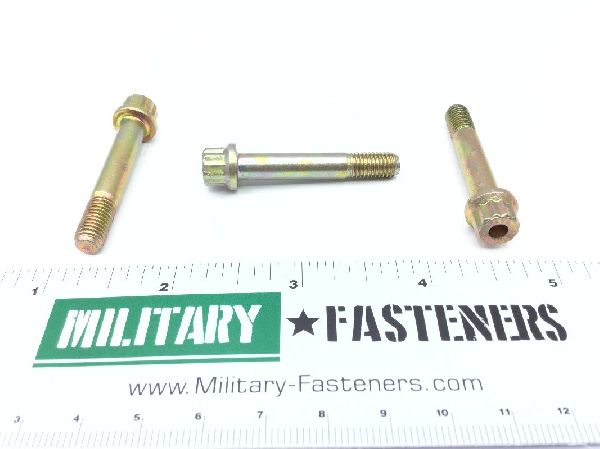

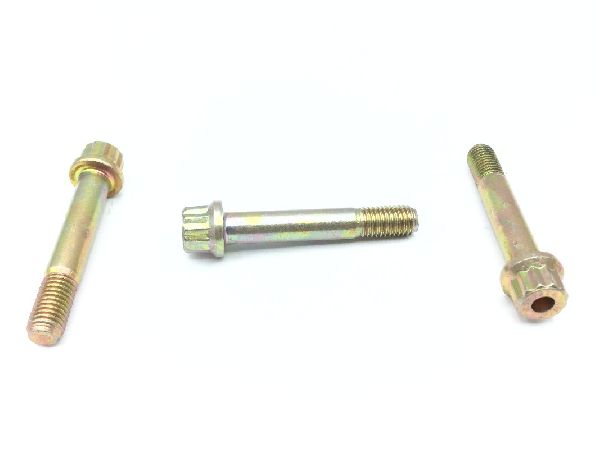

MS21250-04016 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $7.22

Units per Pack 10

Price per Pack $72.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $72.20

Add item to quote

Head Style

Double hexagon w/hole

Material

Steel

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification all treatment responses

Thread Class

Extended Washer Diameter: Between 0.428 inches and 0.438 inches
Extended Washer Thickness: 0.069 inches
Fastener Length: 1.512 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: 1.000 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.300 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or mil-s-8503 military specification 3rd material response or mil-s-5626 military specification 4th material response
Min. Tensile Strength (psi): 180000 pounds per square inch
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.492 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.304 inches and 0.313 inches
