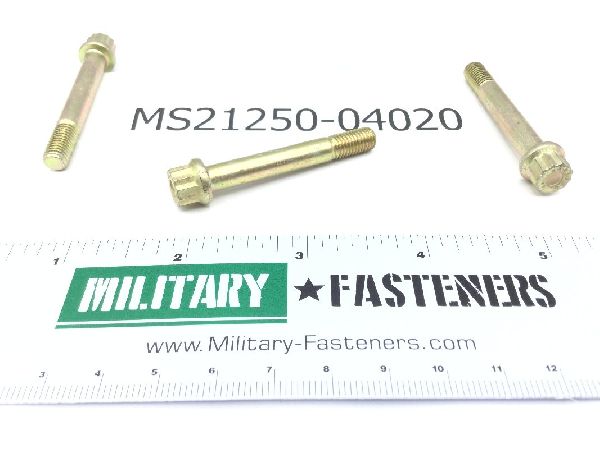

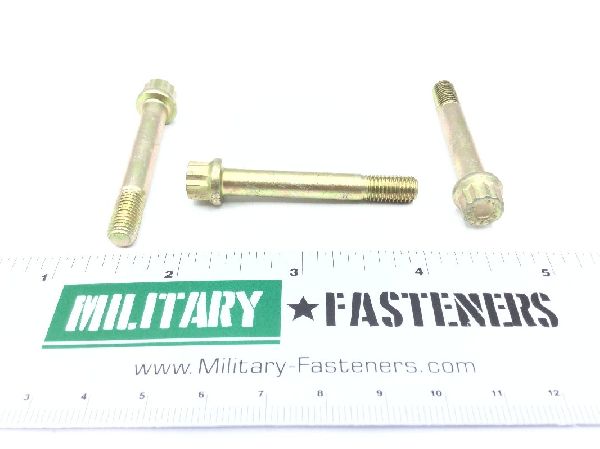

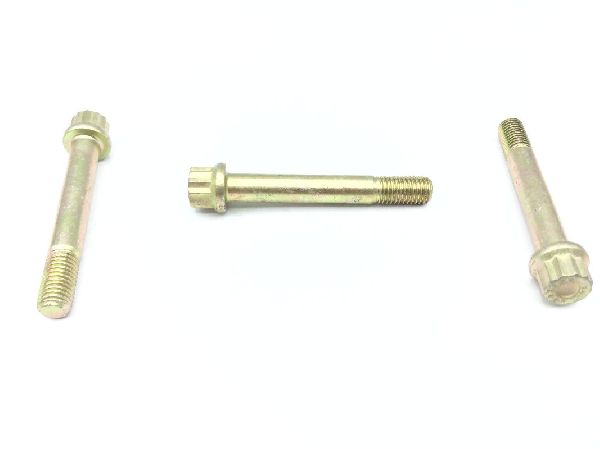

MS21250-04020 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Double hexagon

Material

Steel comp 8740 or steel comp e4340 or steel comp 4340 or steel comp 6150 or steel comp 4140

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Extended Washer Diameter: Between 0.428 inches and 0.438 inches
Extended Washer Thickness: 0.069 inches
Fastener Length: 1.762 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: 1.250 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.300 inches
Min. Tensile Strength (psi): 180000 pounds per square inch
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.492 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.304 inches and 0.313 inches
