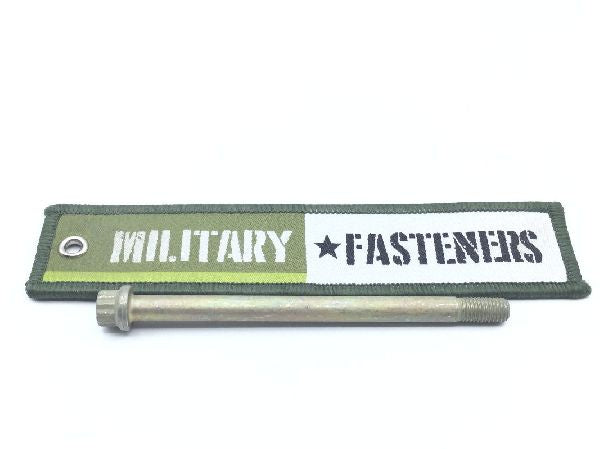

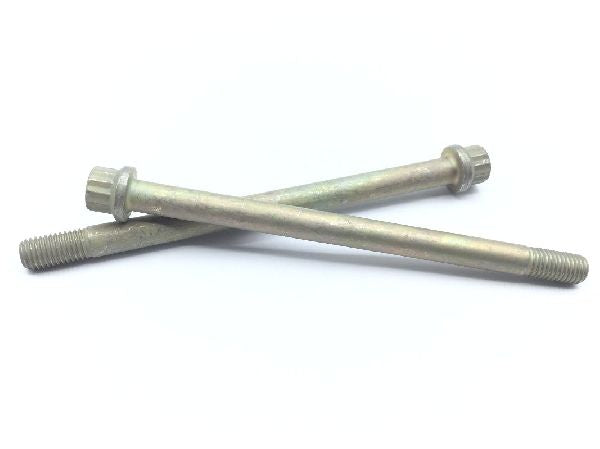

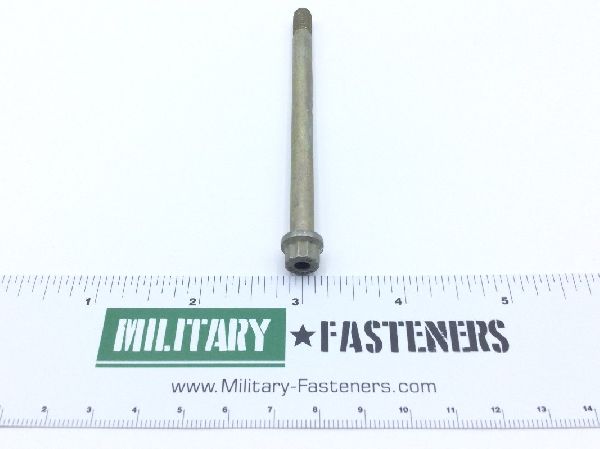

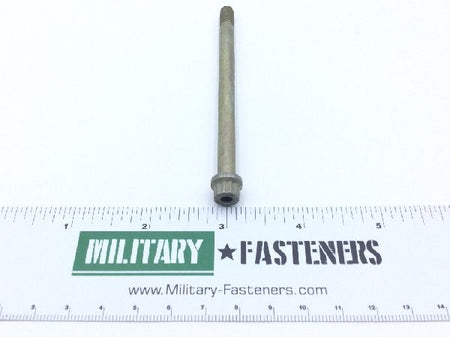

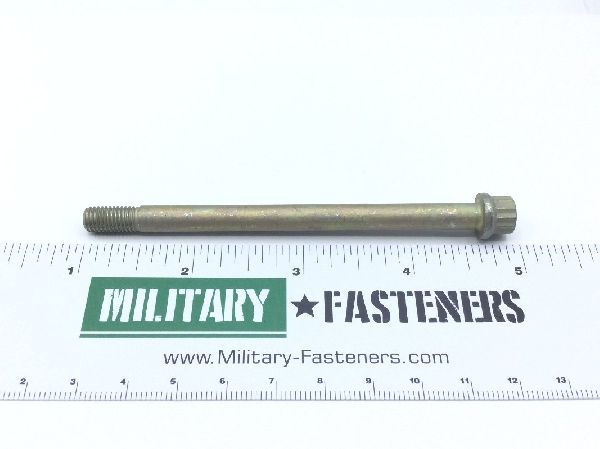

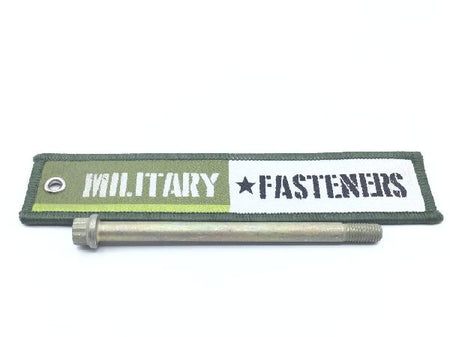

MS21250-04050 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $19.33

Units per Pack 5

Price per Pack $96.65

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $96.65

Add item to quote

Head Style

Double hexagon w/hole

Material

Steel

Surface Treatment

Qq-p-416 type 2 cl 2 federal specification single treatment response

Thread Class

Extended Washer Diameter: Between 0.428 inches and 0.438 inches
Extended Washer Thickness: Between 0.059 inches and 0.079 inches
Fastener Length: Between 3.627 inches and 3.647 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: Between 3.115 inches and 3.135 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: Between 0.290 inches and 0.310 inches
Min. Tensile Strength (psi): 180000 pounds per square inch
Surface Finish: 32.0 microinches grip
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.492 inches and 0.532 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.302 inches and 0.322 inches
