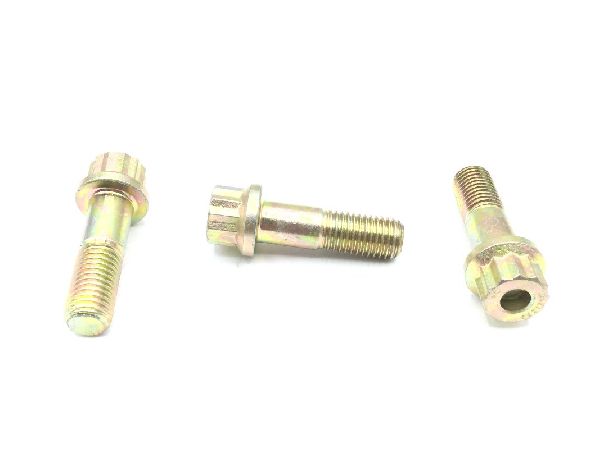

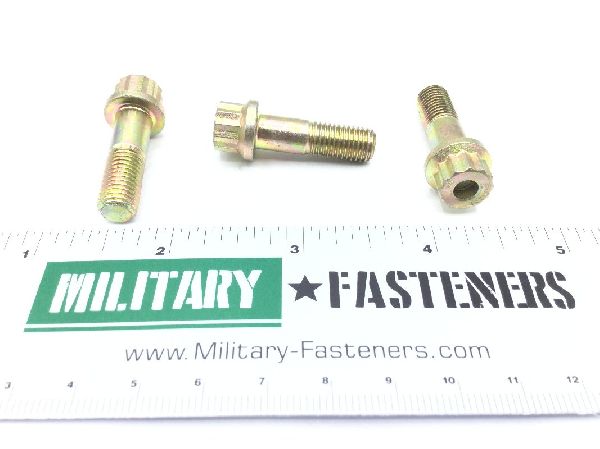

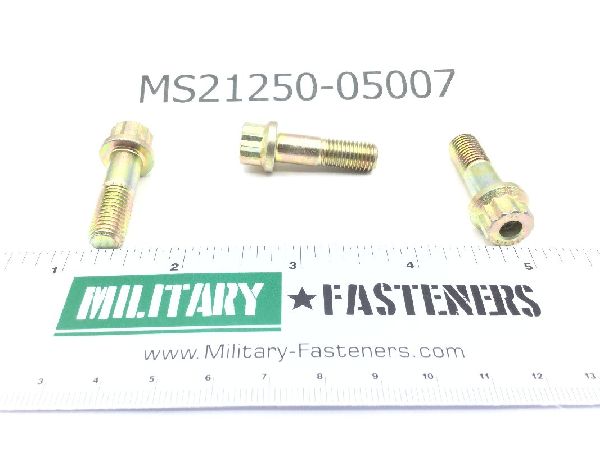

MS21250-05007 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $6.98

Units per Pack 10

Price per Pack $69.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $69.80

Add item to quote

Head Style

Double hexagon extended washer

Material

Steel

Surface Treatment

Cl 2 federal specification single treatment response qq-p-416 type 2

Thread Class

Extended Washer Diameter: Between 0.521 inches and 0.531 inches
Extended Washer Thickness: 0.082 inches
Fastener Length: 1.036 inches
Grip Diameter: Between 0.3110 inches and 0.3120 inches
Grip Length: Between 0.427 inches and 0.447 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.348 inches
Min. Tensile Strength (psi): 180000 pounds per square inch
Surface Finish: 32.0 microinches bearing surface of head
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: 0.599 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.375 inches
