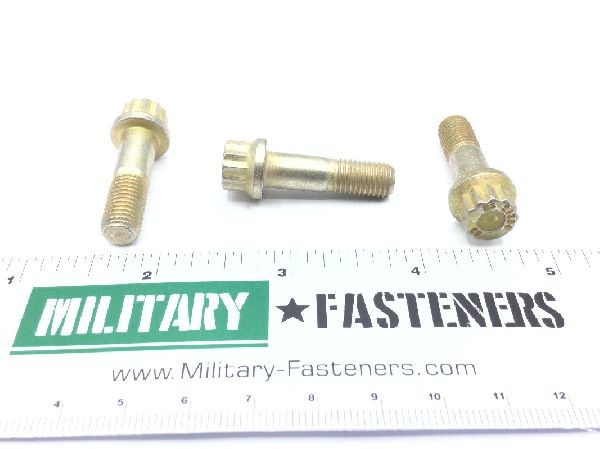

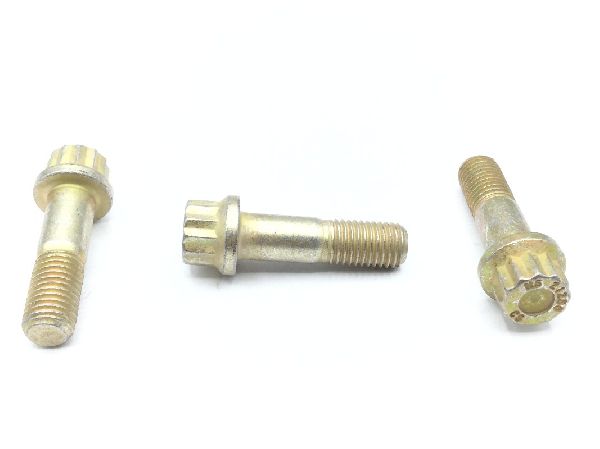

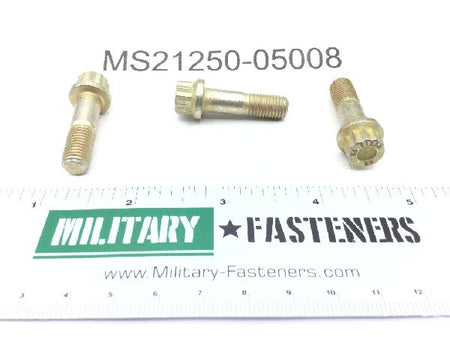

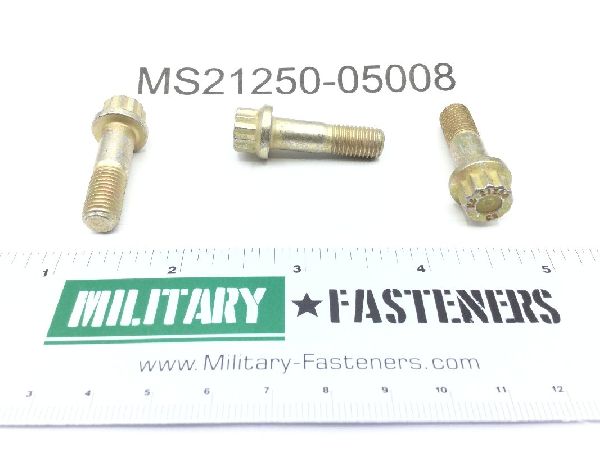

MS21250-05008 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Double hexagon extended washer

Material

Steel

Surface Treatment

Class 2 federal specification single treatment response qq-p-416 ty2

Thread Class

Extended Washer Diameter: Between 0.428 inches and 0.438 inches
Extended Washer Thickness: 0.082 inches
Fastener Length: 1.099 inches
Grip Diameter: Between 0.3110 inches and 0.3120 inches
Grip Length: Between 0.490 inches and 0.510 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.348 inches
Material Specification: Mil-s-6049 military specification 1st material response or mil-s-5626 military specification 2nd material response or mil-s-5000 military specification 3rd material response or mil-s-8503 military specification 4th material response
Min. Tensile Strength (psi): 180000 pounds per square inch
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: 0.579 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.367 inches and 0.376 inches
