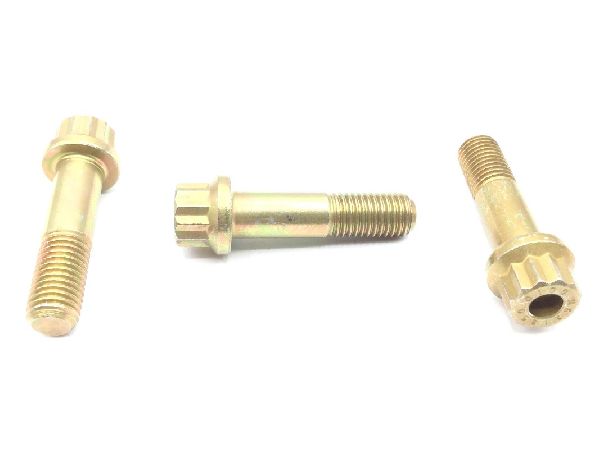

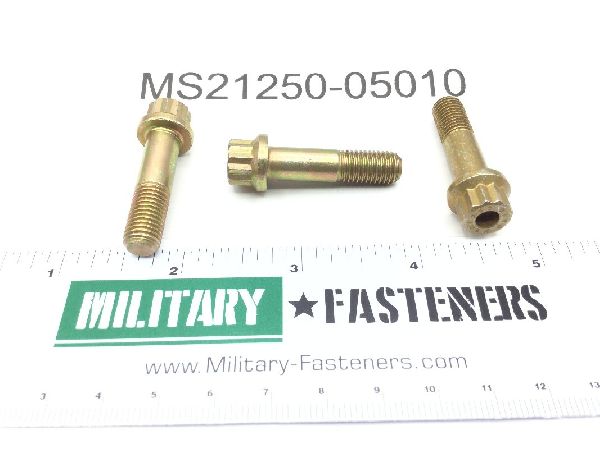

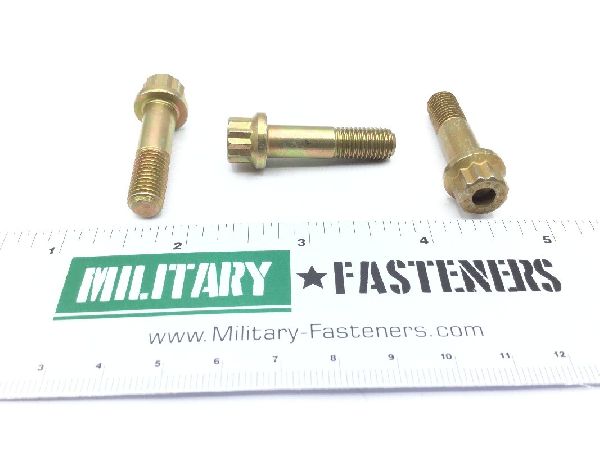

MS21250-05010 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $10.15

Units per Pack 5

Price per Pack $50.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $50.75

Add item to quote

Head Style

Double hexagon w/hole

Material

Steel

Surface Treatment

Type 2 cl 2 federal specification all treatment responses qq-p-416

Thread Class

Extended Washer Diameter: Between 0.521 inches and 0.531 inches
Extended Washer Thickness: 0.082 inches
Fastener Length: 1.224 inches
Grip Diameter: Between 0.3110 inches and 0.3120 inches
Grip Length: Between 0.615 inches and 0.635 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.348 inches
Hole Configuration Style: Hexagon longitudinal hole
Hole Quantity: 4
Hole Type: Drilled
Min. Tensile Strength (psi): 180000 pounds per square inch
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.589 inches and 0.609 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.367 inches and 0.376 inches
Hole Diameter: 0.055 inches
