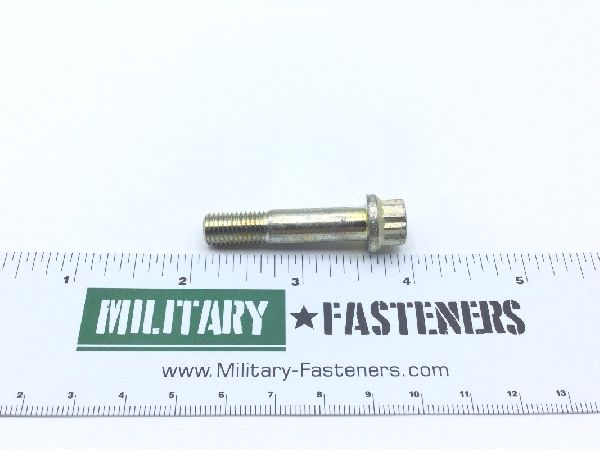

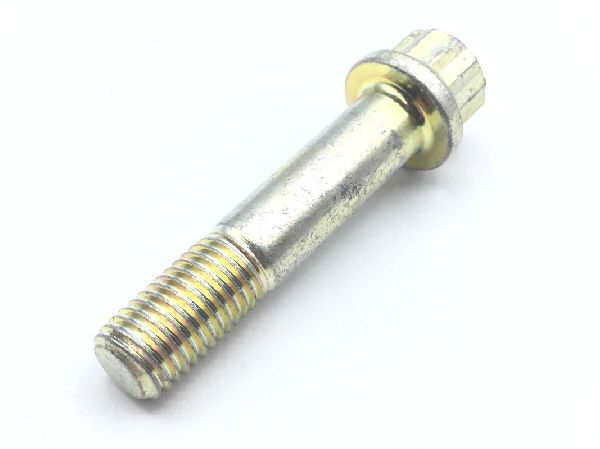

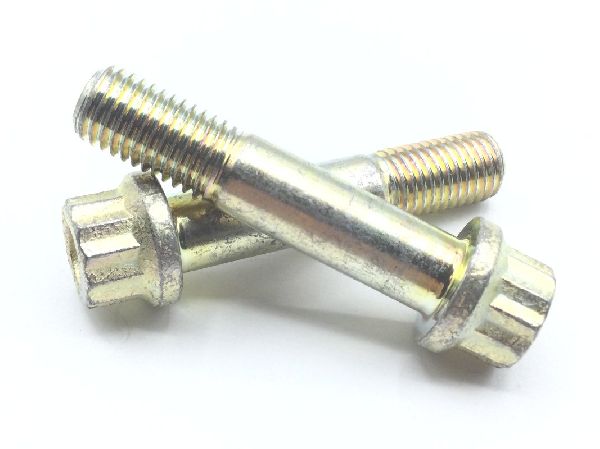

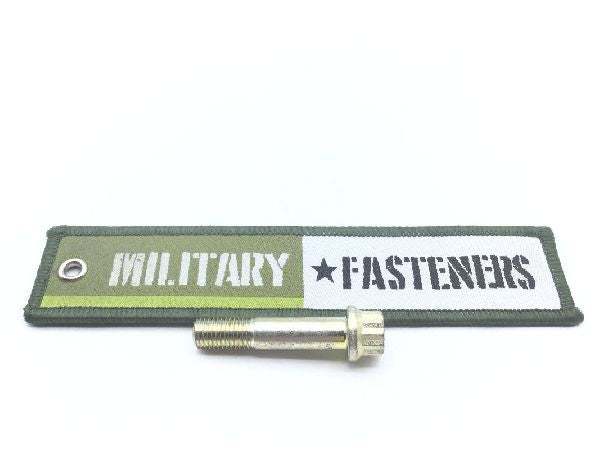

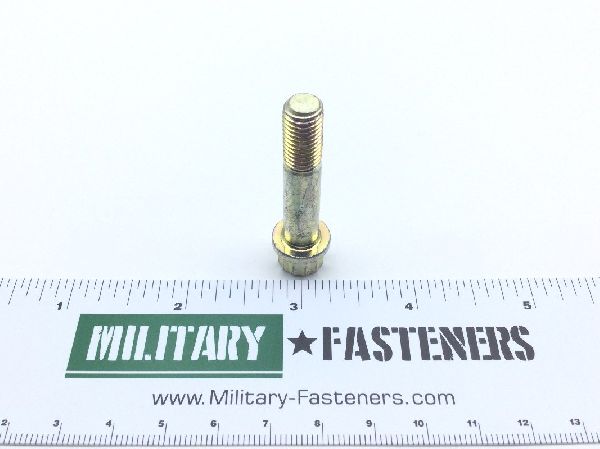

MS21250-05014 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Double hexagon extended washer

Material

Steel comp 8740 or steel comp e4340 or steel comp 6150 or steel comp 4140

Surface Treatment

type 2 cl 2 federal specification single treatment response qq-p-416

Thread Class

Extended Washer Diameter: Between 0.521 inches and 0.531 inches
Extended Washer Thickness: 0.082 inches
Fastener Length: 1.474 inches
Grip Diameter: Between 0.3110 inches and 0.3120 inches
Grip Length: Between 0.865 inches and 0.885 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.348 inches
Min. Tensile Strength (psi): 180000 pounds per square inch
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: 0.579 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.360 inches and 0.375 inches
