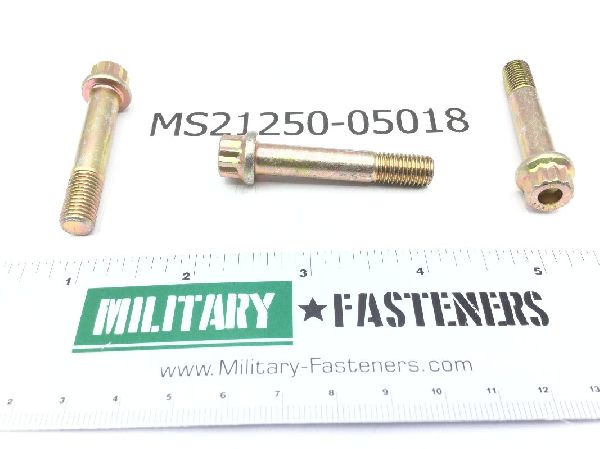

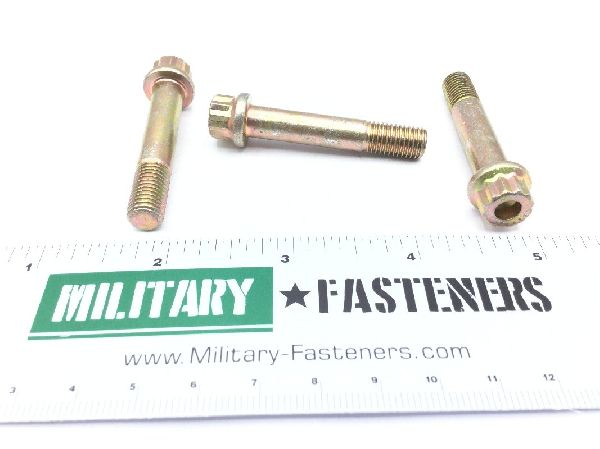

MS21250-05018 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $6.58

Units per Pack 10

Price per Pack $65.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $65.80

Add item to quote

Head Style

Double hexagon w/hole

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Extended Washer Diameter: Between 0.521 inches and 0.531 inches
Extended Washer Thickness: Between 0.072 inches and 0.092 inches
Fastener Length: Between 1.714 inches and 1.734 inches
Grip Diameter: Between 0.3110 inches and 0.3120 inches
Grip Length: Between 1.115 inches and 1.135 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: Between 0.338 inches and 0.358 inches
Min. Tensile Strength (psi): 180000 pounds per square inch
Single Shear Strength: 108000 pounds per square inch
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.579 inches and 0.619 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.367 inches and 0.376 inches
