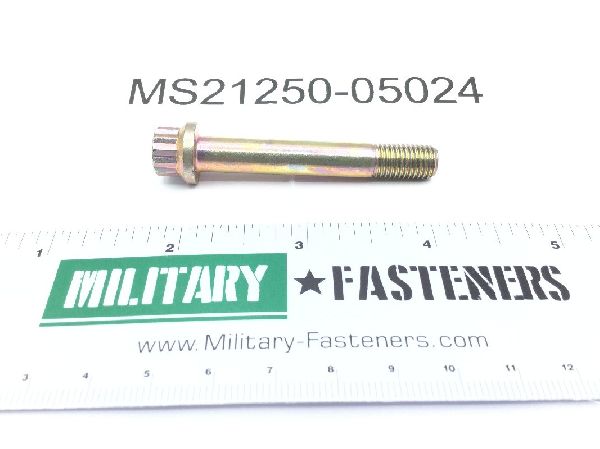

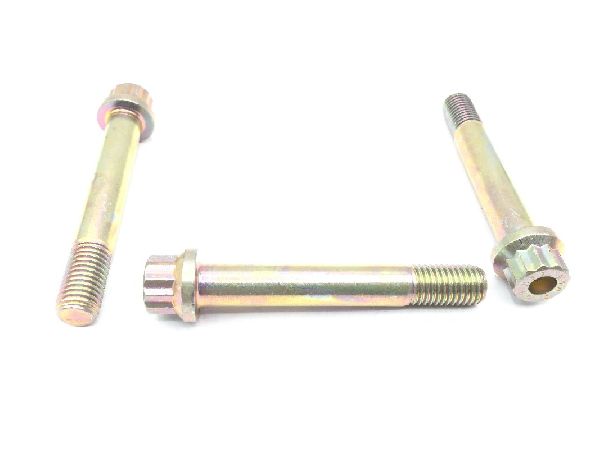

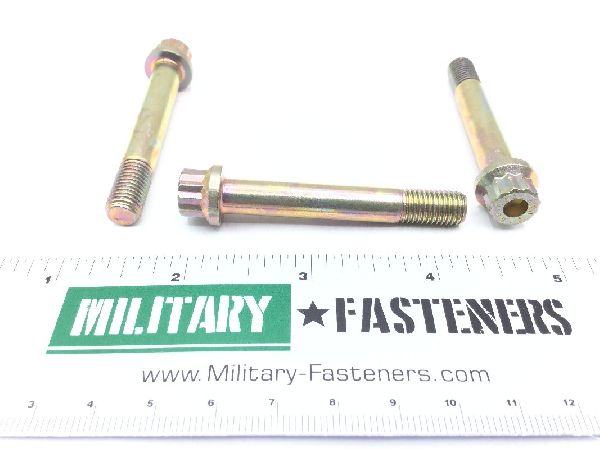

MS21250-05024 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $11.80

Units per Pack 5

Price per Pack $59.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $59.00

Add item to quote

Head Style

Double hexagon w/hole

Material

Steel comp 8740 or steel comp e4340 or steel comp 4340 or steel comp 6150 or steel comp 4140

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification all treatment responses

Thread Class

Extended Washer Diameter: Between 0.521 inches and 0.531 inches
Extended Washer Thickness: 0.082 inches
Fastener Length: 2.099 inches
Grip Diameter: Between 0.3110 inches and 0.3120 inches
Grip Length: 1.500 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.348 inches
Min. Tensile Strength (psi): 180000 pounds per square inch
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: 0.579 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.367 inches and 0.376 inches
