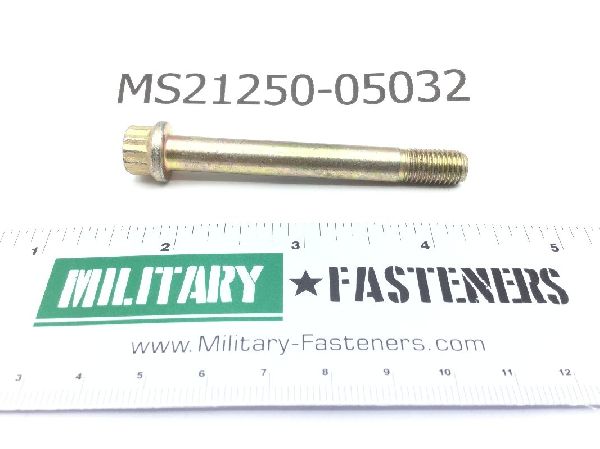

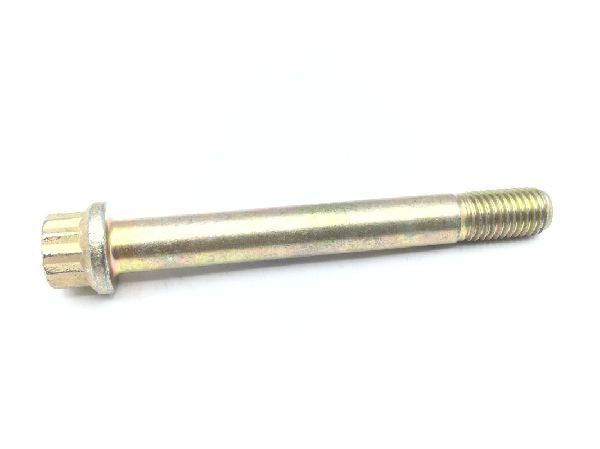

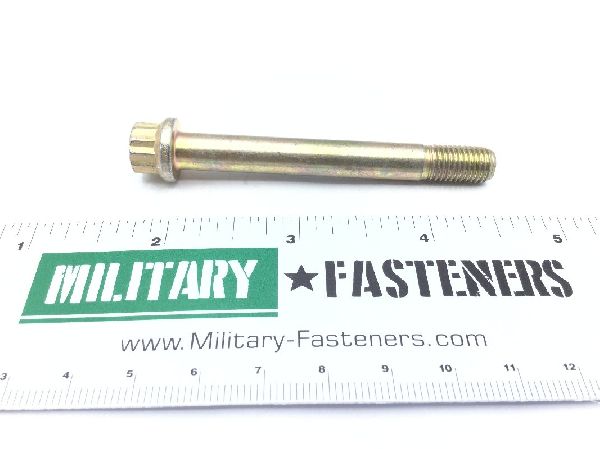

MS21250-05032 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $41.58

Units per Pack 1

Price per Pack $41.58

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $41.58

Add item to quote

Head Style

Double hexagon w/hole

Material

Steel comp 4140 or steel comp e4340 or steel comp 8740 or steel comp 6150

Surface Treatment

Qq-p-416 type 2 cl 2 federal specification single treatment response

Thread Class

Extended Washer Diameter: Between 0.521 inches and 0.531 inches
Extended Washer Thickness: Between 0.072 inches and 0.092 inches
Fastener Length: Between 2.589 inches and 2.609 inches
Grip Diameter: Between 0.3110 inches and 0.3120 inches
Grip Length: Between 1.990 inches and 2.010 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: Between 0.338 inches and 0.358 inches
Material Specification: Mil-s-5626 military specification 1st material response or mil-s-5000 military specification 2nd material response or mil-s-6049 military specification 3rd material response or mil-s-8503 military specification 4th material response
Min. Tensile Strength (psi): 180000 pounds per square inch
Surface Finish: 32.0 microinches grip
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.579 inches and 0.619 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.375 inches
