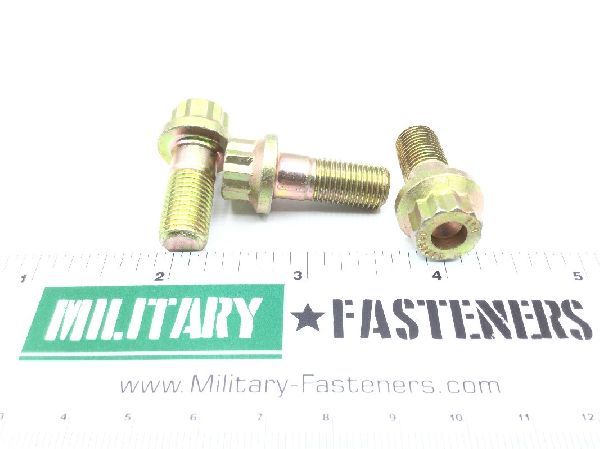

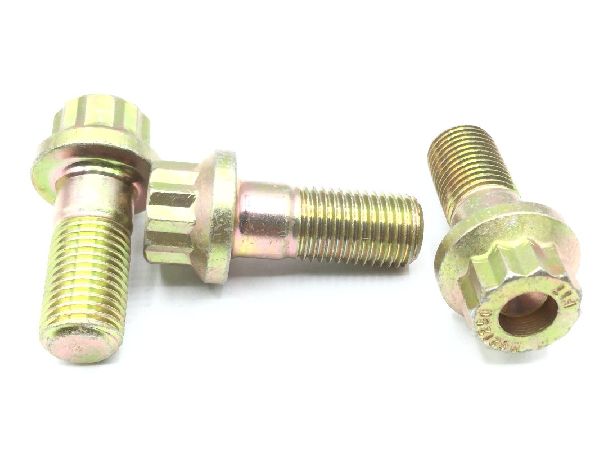

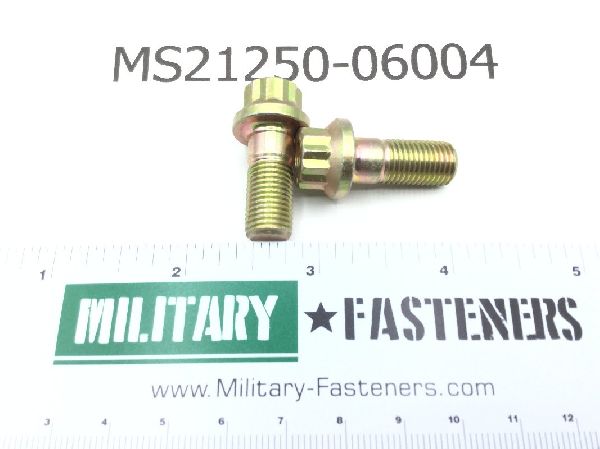

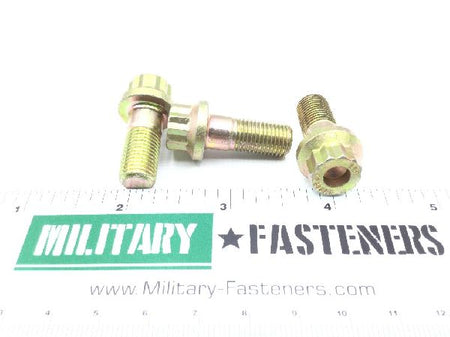

MS21250-06004 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Double hexagon w/hole

Material

Steel comp e4340 or steel comp 8740 or steel comp 6150 or steel comp 4140

Surface Treatment

Class 3 federal specification single treatment response qq-p-416 ty2

Thread Class

Extended Washer Diameter: Between 0.639 inches and 0.649 inches
Extended Washer Thickness: 0.091 inches
Fastener Length: 0.895 inches
Grip Diameter: Between 0.3735 inches and 0.3745 inches
Grip Length: Between 0.240 inches and 0.260 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.388 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or mil-s-8503 military specification 3rd material response or mil-s-5626 military specification 4th material response
Min. Tensile Strength (psi): 180000 pounds per square inch
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.625 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.430 inches and 0.439 inches
