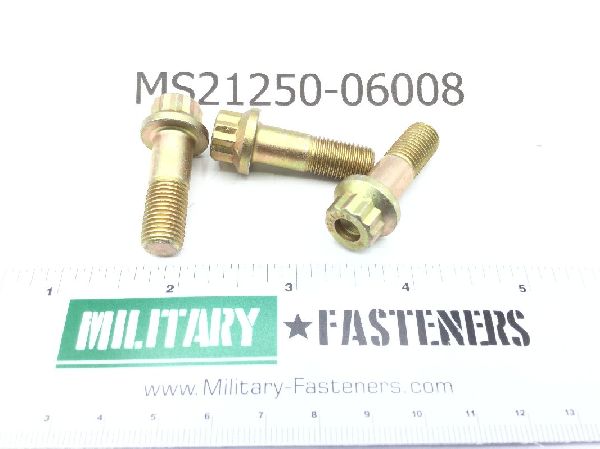

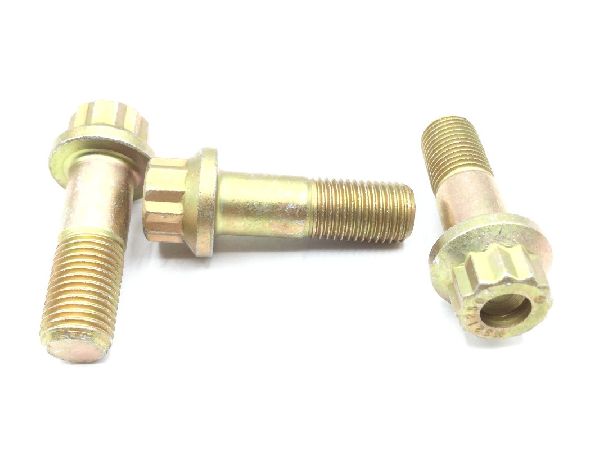

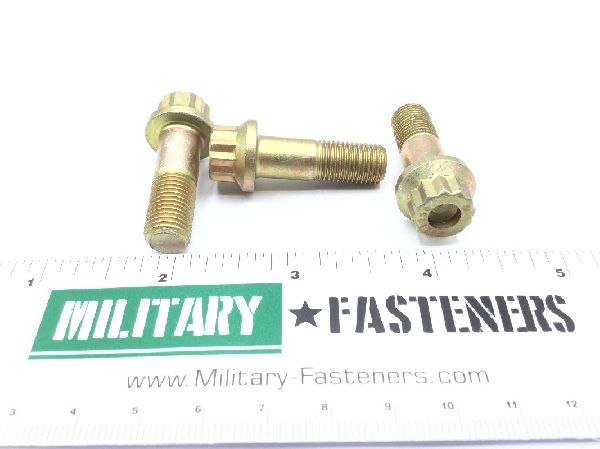

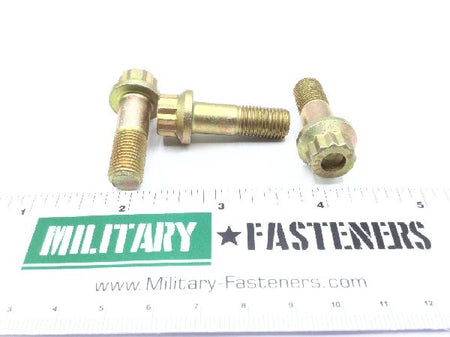

MS21250-06008 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $10.39

Units per Pack 5

Price per Pack $51.95

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $51.95

Add item to quote

Head Style

Double hexagon w/hole

Material

Steel comp 4140 or steel comp e4340 or steel comp 4340 or steel comp 8740 or steel comp 6150

Surface Treatment

Qq-p-416 type 2 cl 2 federal specification all treatment responses

Thread Class

Extended Washer Diameter: Between 0.639 inches and 0.649 inches
Extended Washer Thickness: 0.091 inches
Fastener Length: 1.145 inches
Features: Finished head
Features Provided: Finished head
Grip Diameter: 1.145 inches
Grip Length: Between 0.490 inches and 0.510 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.388 inches
Min. Tensile Strength (psi): 180000 pounds per square inch
Surface Finish: 32.0 microinches grip
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.625 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.430 inches and 0.439 inches
