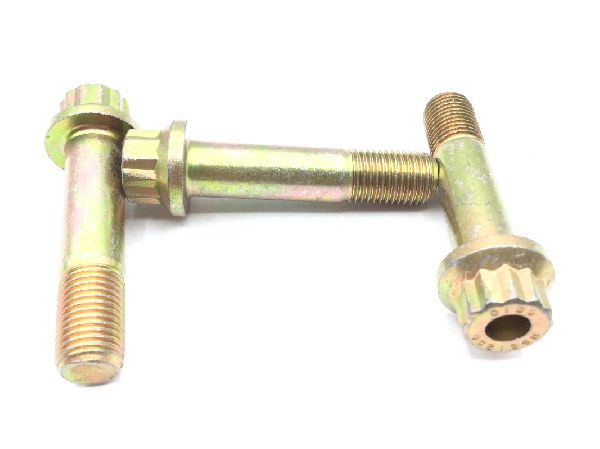

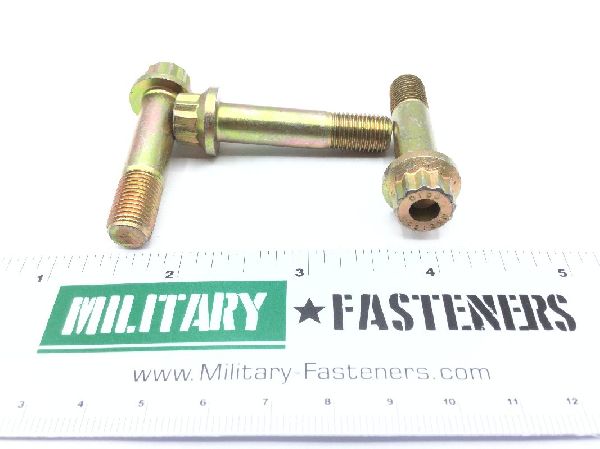

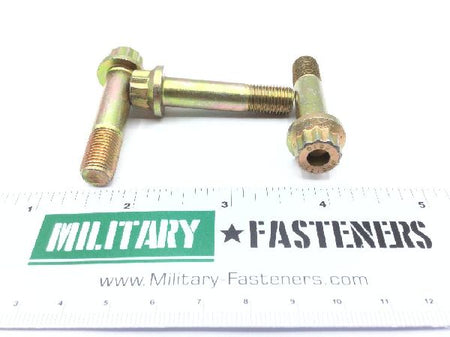

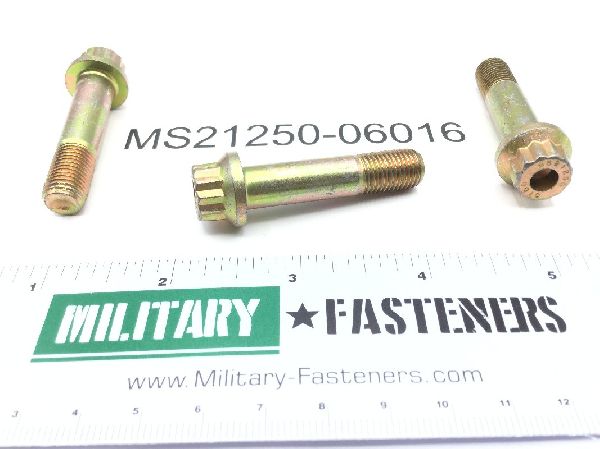

MS21250-06016 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $14.18

Units per Pack 5

Price per Pack $70.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $70.90

Add item to quote

Head Style

Double hexagon w/hole

Material

Steel comp e4340 or steel comp 8740 or steel comp 6150 or steel comp 4140

Surface Treatment

Class 3 federal specification single treatment response qq-p-416 ty2

Thread Class

Extended Washer Diameter: Between 0.639 inches and 0.649 inches
Extended Washer Thickness: 0.091 inches
Fastener Length: 1.645 inches
Grip Diameter: Between 0.3735 inches and 0.3745 inches
Grip Length: Between 0.990 inches and 1.010 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.388 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or mil-s-8503 military specification 3rd material response or mil-s-5626 military specification 4th material response
Min. Tensile Strength (psi): 180000 pounds per square inch
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.635 inches and 0.655 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.430 inches and 0.439 inches
