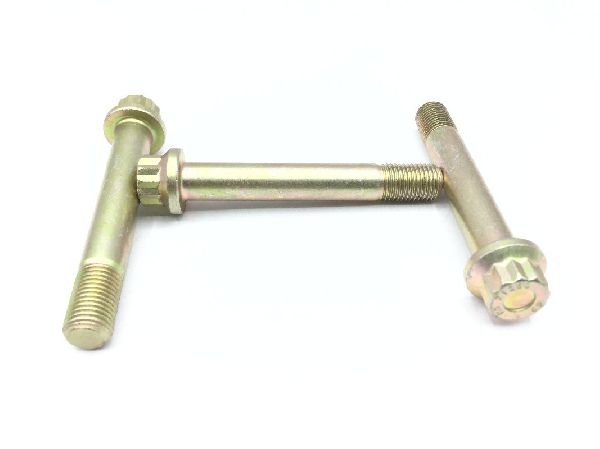

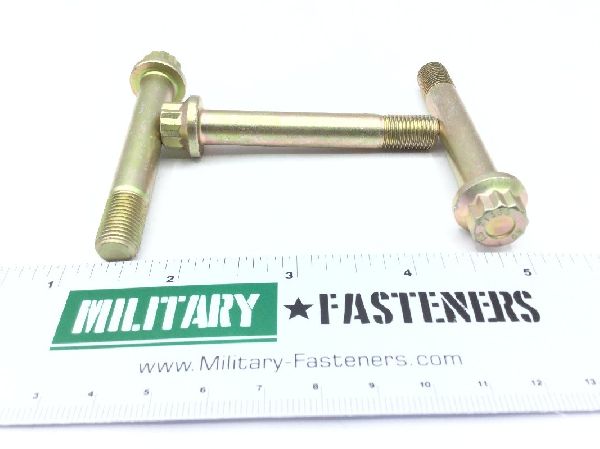

MS21250-06030 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Double hexagon w/hole

Material

Steel comp 430fse or steel comp 81b45 or steel comp 302b or steel comp 4140

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

Extended Washer Diameter: Between 0.639 in and 0.649 in
Extended Washer Thickness: 0.091 in
Fastener Length: 2.520 in
Grip Diameter: Between 0.3735 in and 0.3745 in
Grip Length: Between 1.865 in and 1.885 in
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.388 in
Min. Tensile Strength (psi): 180000 pounds per square inch
Thread Diameter: 0.375 in
Thread Direction: Right-hand
Thread Length: Between 0.635 in and 0.655 in
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.430 in and 0.439 in
