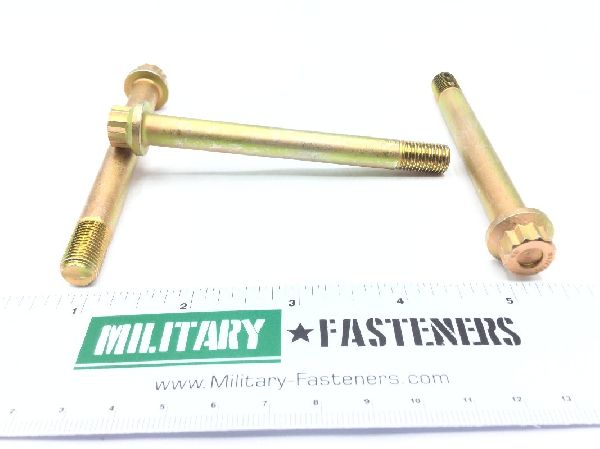

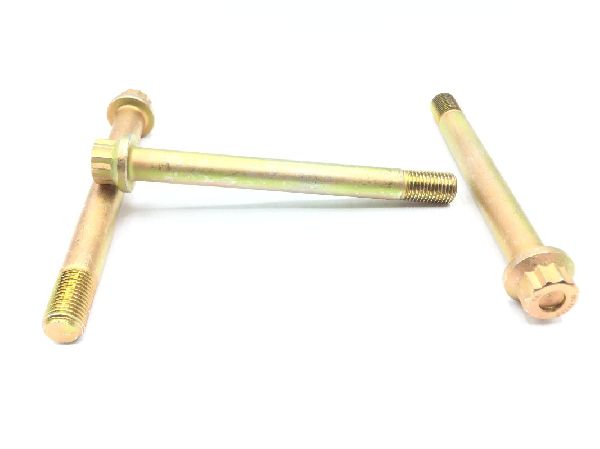

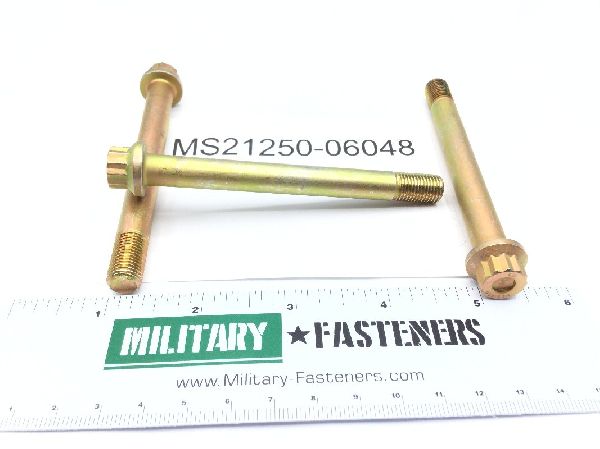

MS21250-06048 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $17.94

Units per Pack 5

Price per Pack $89.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $89.70

Add item to quote

Head Style

Double hexagon w/hole

Material

Steel

Thread Class

Extended Washer Diameter: Between 0.639 inches and 0.649 inches
Extended Washer Thickness: Between 0.081 inches and 0.101 inches
Fastener Length: Between 3.635 inches and 3.655 inches
Grip Diameter: Between 0.3735 inches and 0.3745 inches
Grip Length: Between 2.990 inches and 3.010 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: Between 0.378 inches and 0.398 inches
Material Specification: Mil-s-5626 military specification single material response
Min. Tensile Strength (psi): 180000 pounds per square inch
Surface Finish: 32.0 microinches grip
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.625 inches and 0.665 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.430 inches and 0.439 inches
