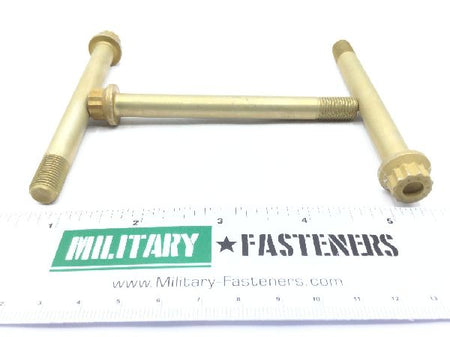

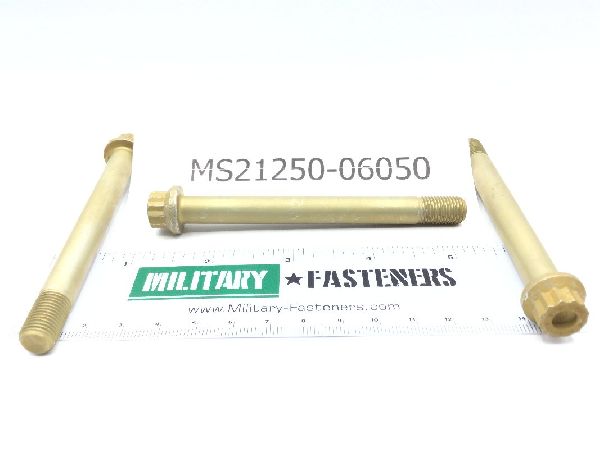

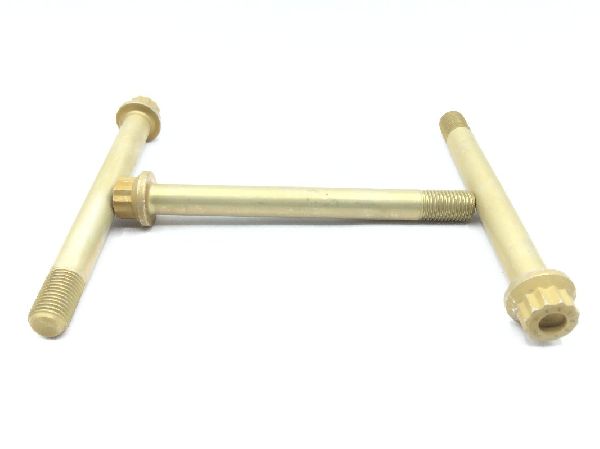

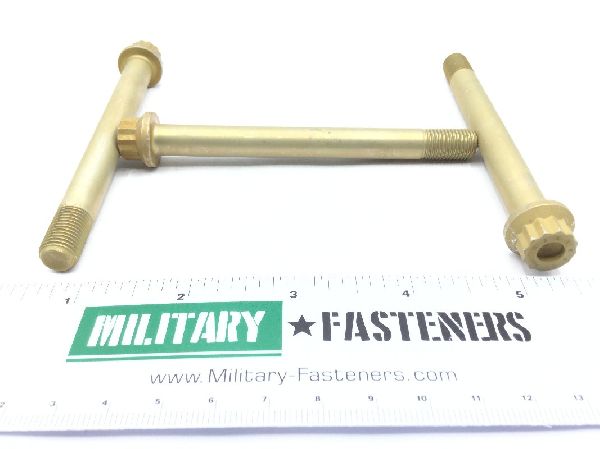

MS21250-06050 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $47.05

Units per Pack 1

Price per Pack $47.05

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $47.05

Add item to quote

Head Style

Double hexagon w/hole

Material

Steel

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Extended Washer Diameter: Between 0.639 inches and 0.649 inches
Extended Washer Thickness: 0.091 inches
Fastener Length: 3.770 inches
Grip Diameter: Between 0.3735 inches and 0.3745 inches
Grip Length: Between 3.115 inches and 3.135 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.388 inches
Min. Tensile Strength (psi): 180000 pounds per square inch
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.635 inches and 0.655 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.430 inches and 0.439 inches
