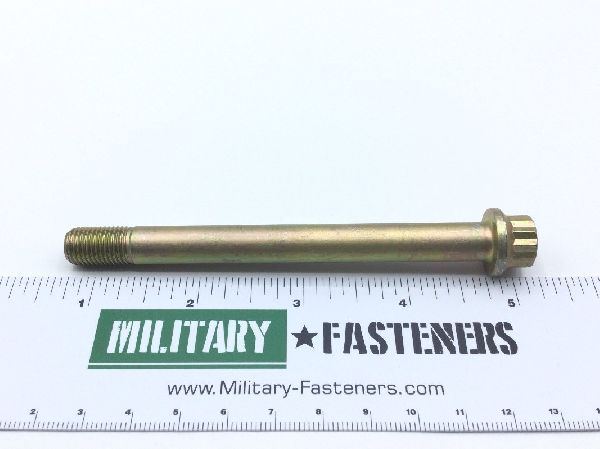

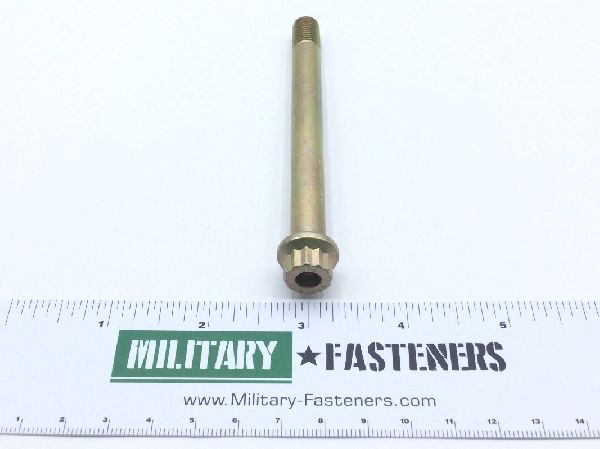

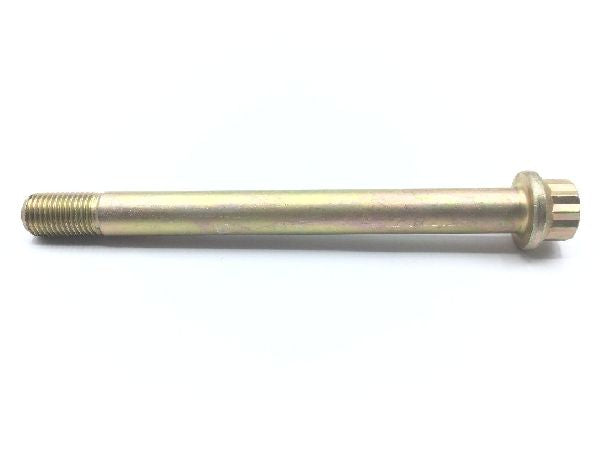

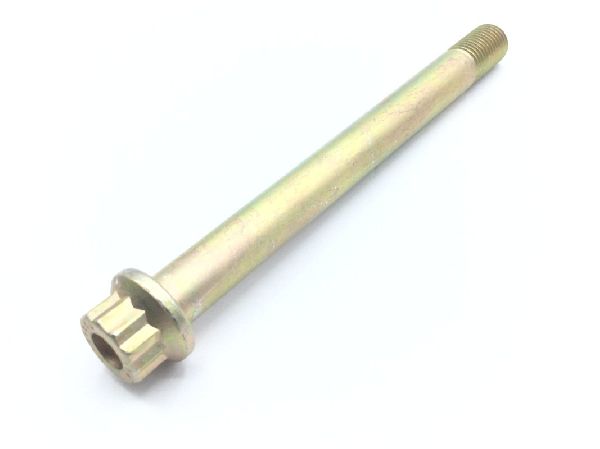

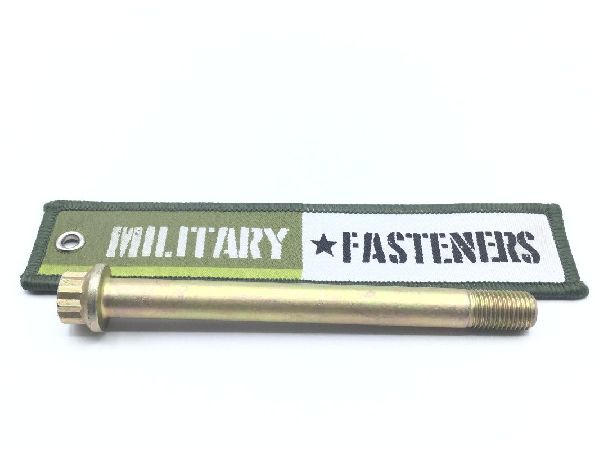

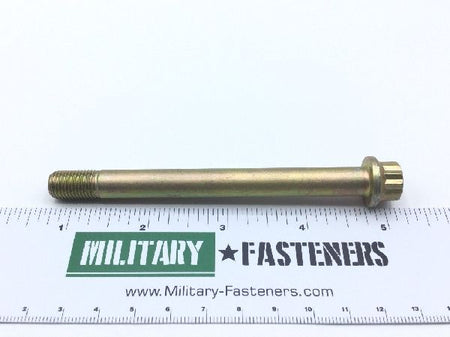

MS21250-06054 Shear Bolt

Product Series: MS
ECCN: 9A991
Schedule: 7318.15.8085

Price per Unit $62.37

Units per Pack 1

Price per Pack $62.37

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $62.37

Add item to quote

Head Style

Double hexagon extended washer

Material

Steel comp

Surface Treatment

Qq-p-416 type 2 class 2 federal specification single treatment response

Thread Class

Extended Washer Diameter: Between 0.639 inches and 0.649 inches
Extended Washer Thickness: 0.091 inches
Fastener Length: 4.020 inches
Grip Diameter: Between 0.3735 inches and 0.3745 inches
Grip Length: Between 3.365 inches and 3.385 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.388 inches
Min. Tensile Strength (psi): 180000 pounds per square inch
Surface Finish: 32.0 microinches grip
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.645 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.438 inches
