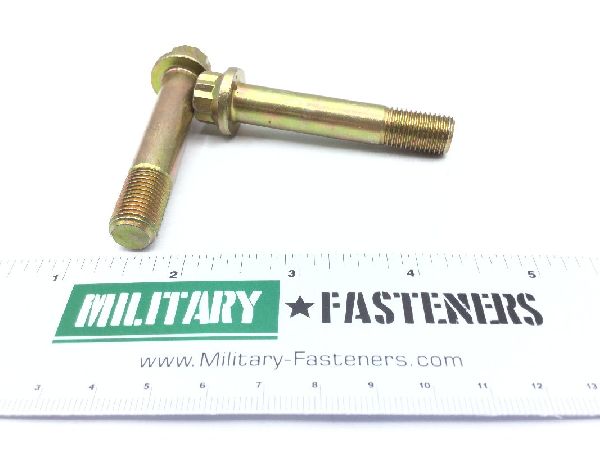

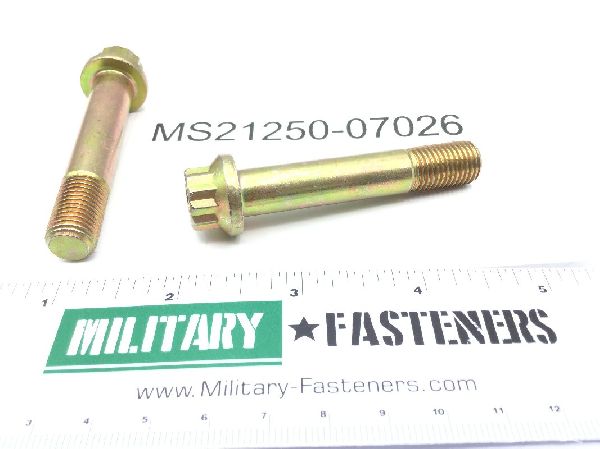

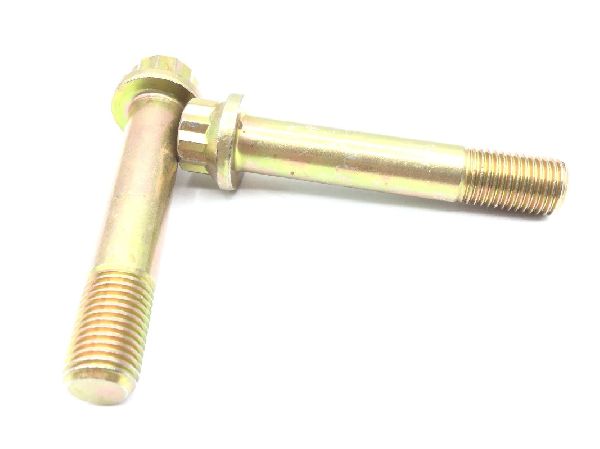

MS21250-07026 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $48.44

Units per Pack 2

Price per Pack $96.88

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $96.88

Add item to quote

Head Style

Double hexagon w/hole

Material

Steel comp e4340 or steel comp 8740 or steel comp 6150 or steel comp 4140

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification all treatment responses

Thread Class

Extended Washer Diameter: Between 0.740 inches and 0.750 inches
Extended Washer Thickness: 0.099 inches
Fastener Length: 2.366 inches
Grip Diameter: Between 0.4360 inches and 0.4370 inches
Grip Length: Between 1.615 inches and 1.635 inches
Hardness Rating: 39 rockwell c and 43 rockwell c
Head Height: 0.435 inches
Min. Tensile Strength (psi): 180000 pounds per square inch
Thread Diameter: 0.438 inches
Thread Direction: Right-hand
Thread Length: Between 0.731 inches and 0.751 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.492 inches and 0.502 inches
