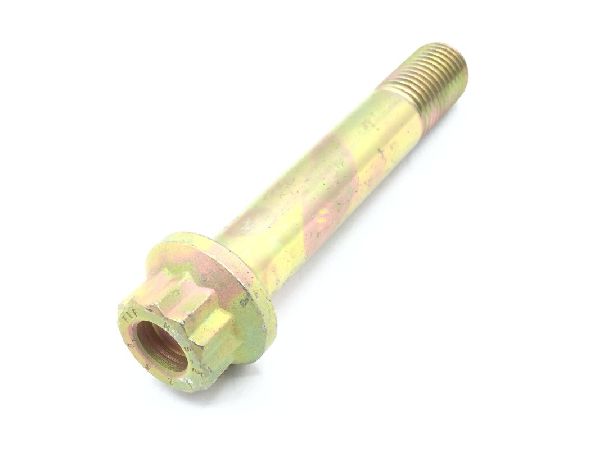

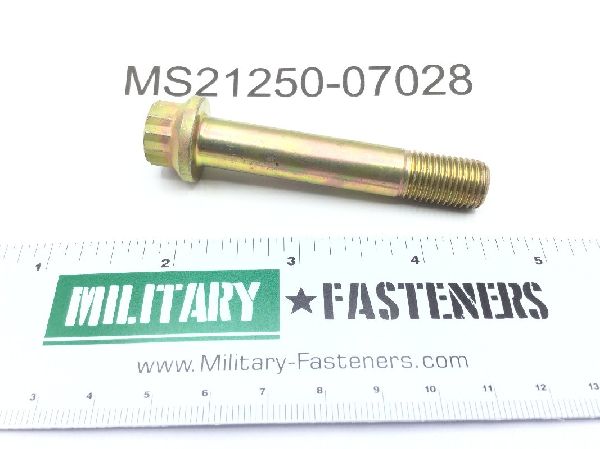

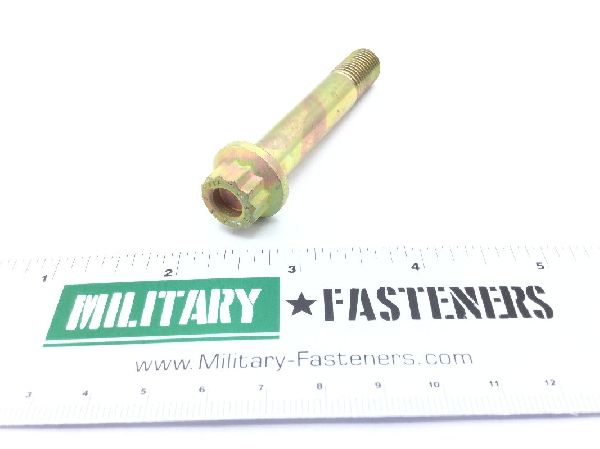

MS21250-07028 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $45.66

Units per Pack 1

Price per Pack $45.66

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $45.66

Add item to quote

Head Style

Double hexagon with hole

Material

Steel comp

Surface Treatment

Qq-p-416 ty2 cl3 federal specification single treatment response

Thread Class

Extended Washer Diameter: Between 0.740 inches and 0.750 inches
Extended Washer Thickness: 0.099 inches
Fastener Length: 2.491 inches
Grip Diameter: Between 0.4360 inches and 0.4370 inches
Grip Length: 1.750 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.435 inches
Min. Tensile Strength (psi): 180000 pounds per square inch
Thread Diameter: 0.438 inches
Thread Direction: Right-hand
Thread Length: 0.721 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.492 inches and 0.502 inches
