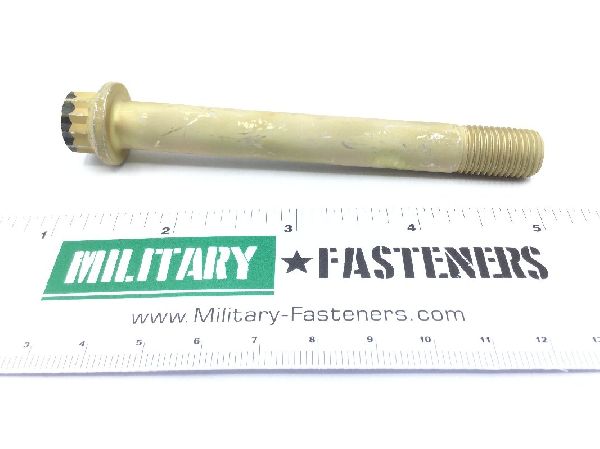

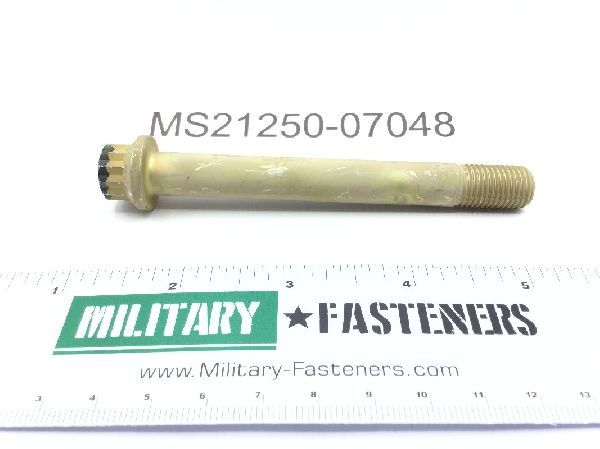

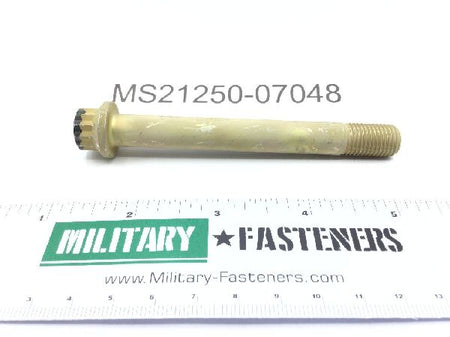

MS21250-07048 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $63.68

Units per Pack 1

Price per Pack $63.68

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $63.68

Add item to quote

Head Style

Double hexagon w/hole

Material

Steel comp 8740 or steel comp 4140 or steel comp e4340 or steel comp 6150

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification all treatment responses

Thread Class

Extended Washer Diameter: Between 0.740 inches and 0.750 inches
Extended Washer Thickness: 0.099 inches
Fastener Length: Between 3.731 inches and 3.751 inches
Grip Diameter: Between 0.4360 inches and 0.4370 inches
Grip Length: Between 2.990 inches and 3.010 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.435 inches
Material Specification: Mil-s-6049 military specification 1st material response or mil-s-5626 military specification 2nd material response or mil-s-5000 military specification 3rd material response or mil-s-8503 military specification 4th material response
Min. Tensile Strength (psi): 180000 pounds per square inch
Thread Diameter: 0.438 inches
Thread Direction: Right-hand
Thread Length: Between 0.721 inches and 0.761 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.492 inches and 0.502 inches
