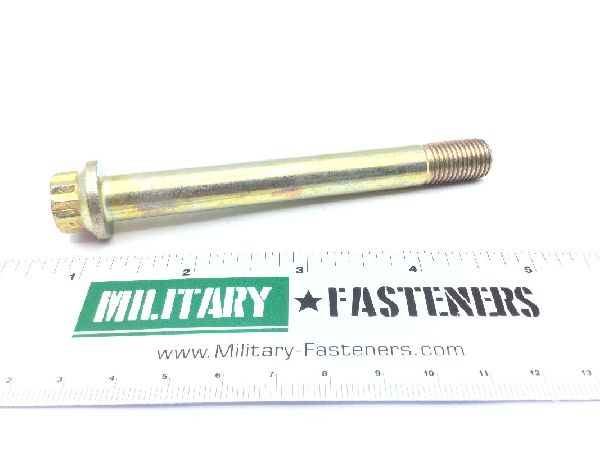

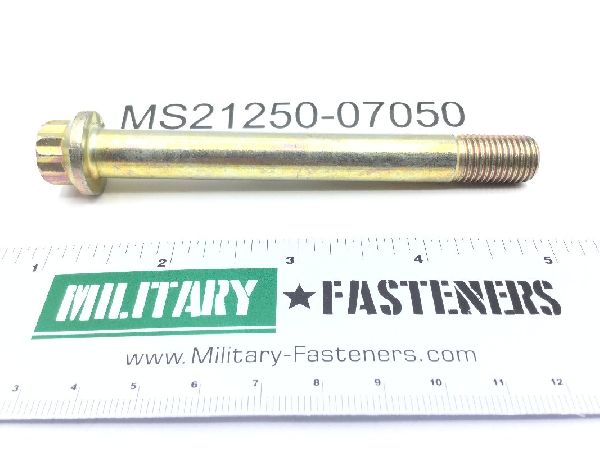

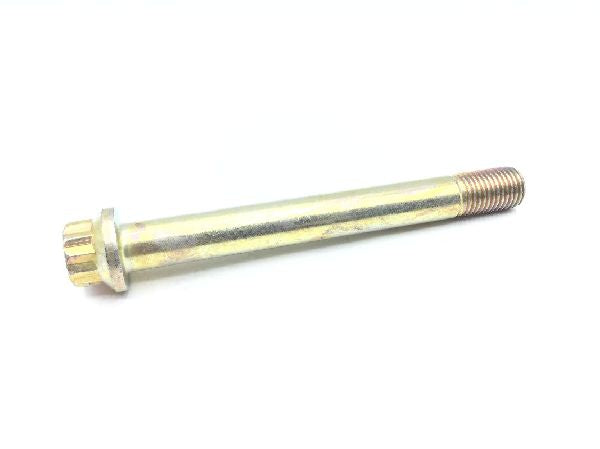

MS21250-07050 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Double hexagon extended washer

Material

Steel comp 4140 or steel comp e4340 or steel comp 8740 or steel comp 6150

Surface Treatment

Qq-p-416 type 2 cl 2 federal specification single treatment response

Thread Class

Extended Washer Diameter: Between 0.740 inches and 0.750 inches
Extended Washer Thickness: 0.099 inches
Fastener Length: 3.866 inches
Grip Diameter: Between 0.4360 inches and 0.4370 inches
Grip Length: Between 3.115 inches and 3.135 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.435 inches
Min. Tensile Strength (psi): 180000 pounds per square inch
Surface Finish: 32.0 microinches grip
Thread Diameter: 0.438 inches
Thread Direction: Right-hand
Thread Length: 0.741 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.500 inches
