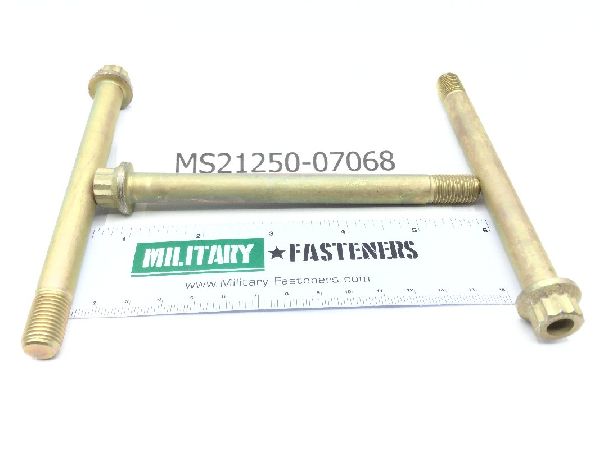

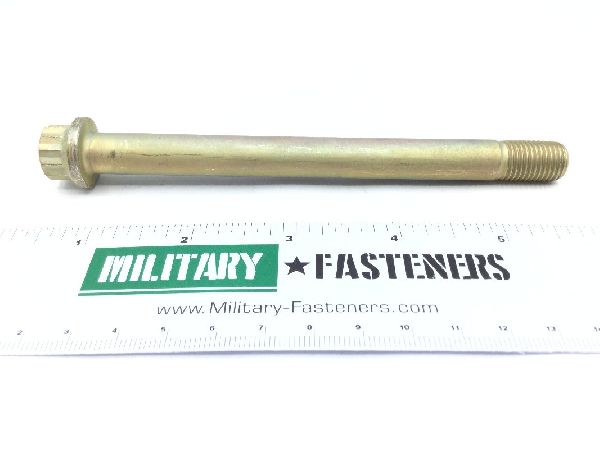

MS21250-07068 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Double hexagon w/hole

Material

Steel comp 8740 and steel comp 4140 and steel comp e4340 and steel comp 6150

Thread Class

Extended Washer Diameter: Between 0.740 inches and 0.750 inches
Extended Washer Thickness: 0.099 inches
Fastener Length: Between 4.981 inches and 5.001 inches
Grip Length: Between 4.490 inches and 4.510 inches
Head Height: 0.435 inches
Thread Diameter: 0.437 inches
Thread Direction: Right-hand
Thread Length: Between 0.721 inches and 0.768 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.492 inches and 0.502 inches
