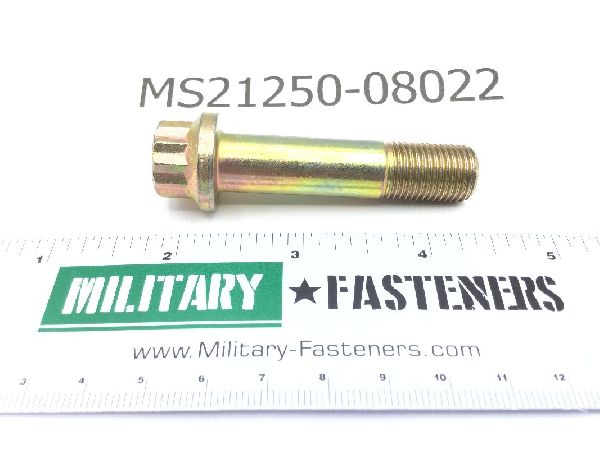

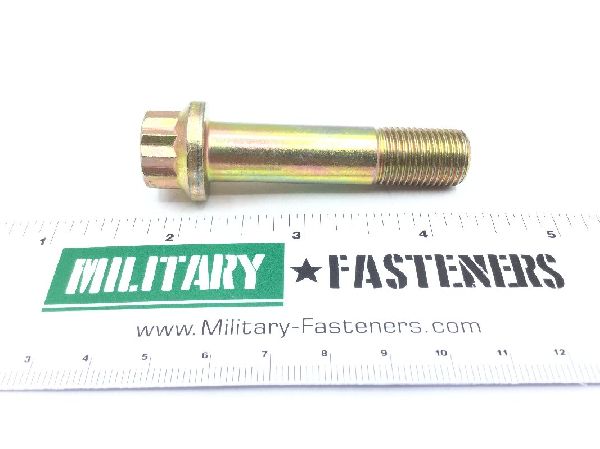

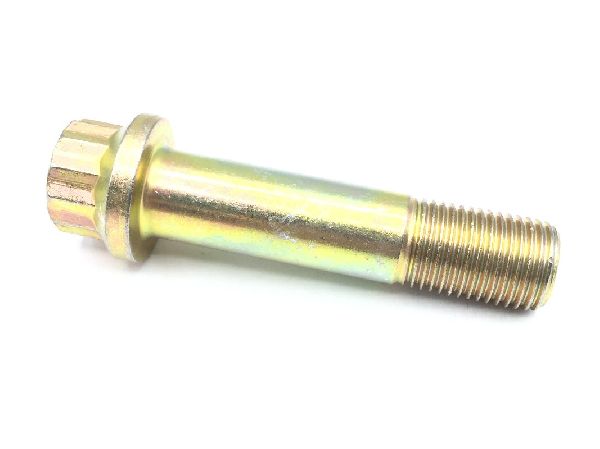

MS21250-08022 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Double hexagon w/hole

Material

Steel comp 8740 or steel comp 4140 or steel comp e4340 or steel comp 6150

Surface Treatment

Qq-p-416 type 2 class 3 federal specification single treatment response

Thread Class

End Application: Galaxy c-5 a-10; aircraft thunderbolt ii hercules c-130; aircraft orion p-3; catapult/arresting gear; aircraft w/s: fms-aircraft
Extended Washer Diameter: Between 0.818 inches and 0.828 inches
Extended Washer Thickness: 0.123 inches
Fastener Length: Between 2.153 inches and 2.173 inches
Grip Diameter: Between 0.4985 inches and 0.4995 inches
Grip Length: Between 1.365 inches and 1.385 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.504 inches
Material Specification: Mil-s-6049 military specification 1st material response or mil-s-5626 military specification 2nd material response or mil-s-5000 military specification 3rd material response or mil-s-8503 military specification 4th material response
Min. Tensile Strength (psi): 180000 pounds per square inch
Thread Diameter: 0.500 inches
Thread Direction: Right-hand
Thread Length: Between 0.768 inches and 0.808 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.553 inches and 0.564 inches
