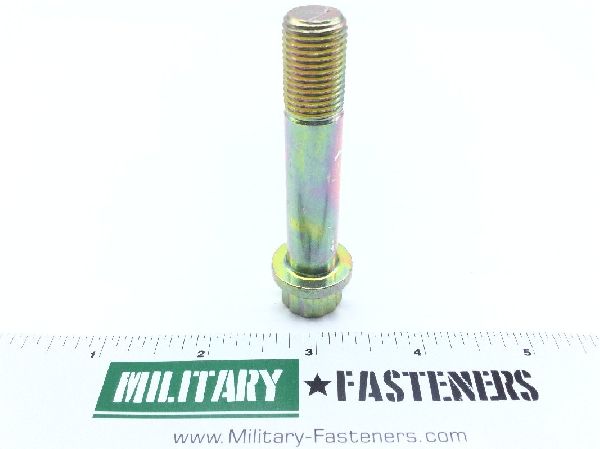

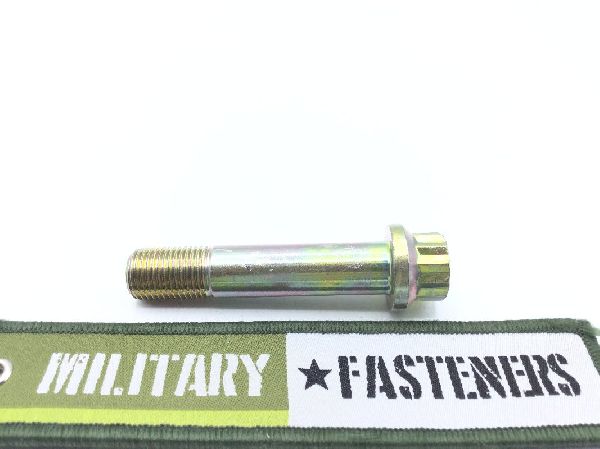

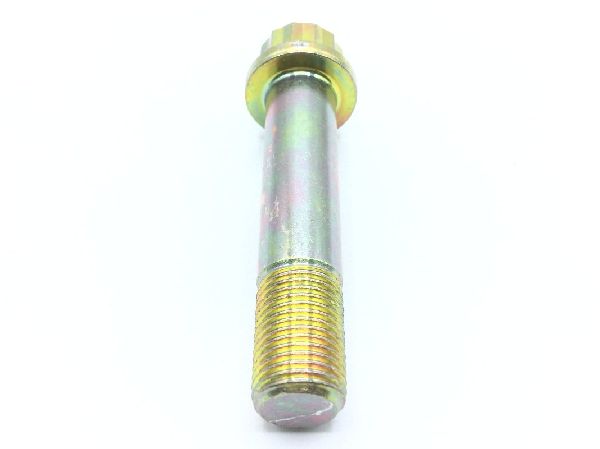

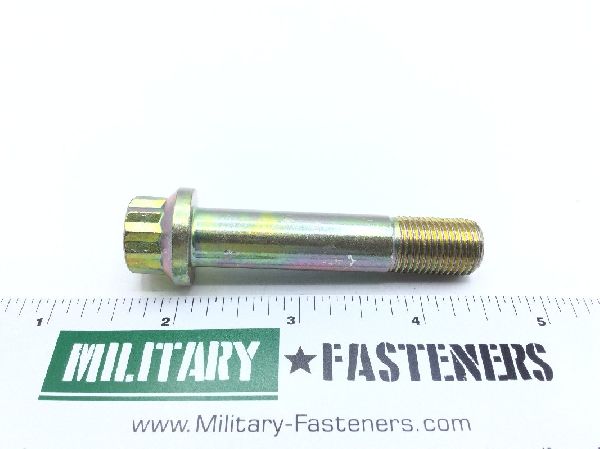

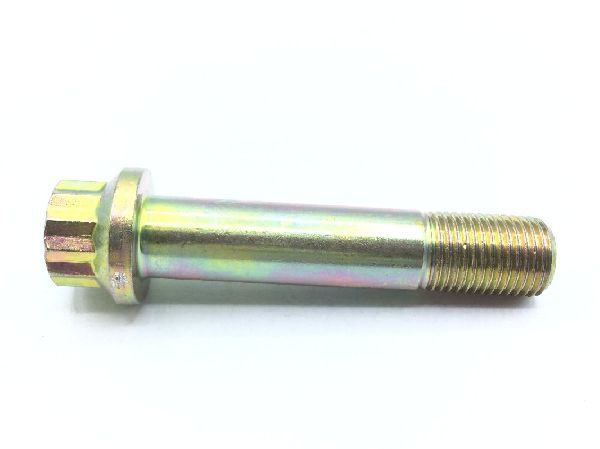

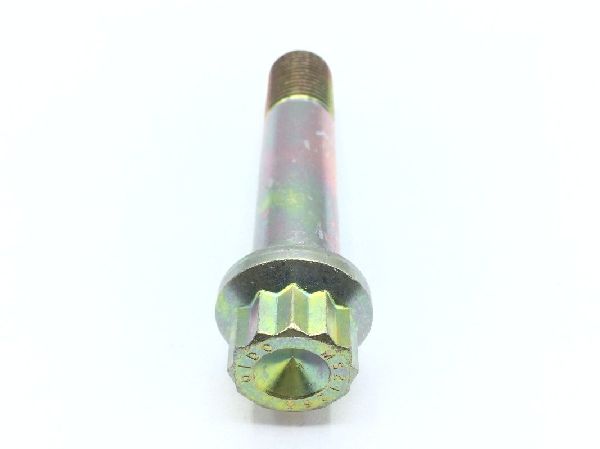

MS21250-08026 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Double hexagon with hole

Material

Steel comp

Surface Treatment

Qq-p-416 type 2 class 3 federal specification single treatment response

Thread Class

Extended Washer Diameter: Between 0.818 inches and 0.828 inches
Extended Washer Thickness: 0.123 inches
Fastener Length: 2.413 inches
Grip Diameter: Between 0.4985 inches and 0.4995 inches
Grip Length: 1.625 inches
Hardness Rating: 39.0 rockwell c and 40.0 rockwell c
Head Height: 0.504 inches
Min. Tensile Strength (psi): 180000 pounds per square inch
Thread Diameter: 0.50 inches
Thread Direction: Right-hand
Thread Length: 0.768 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.553 inches and 0.564 inches
