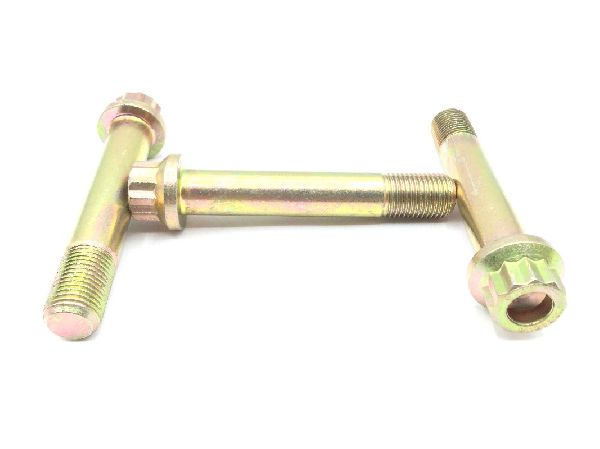

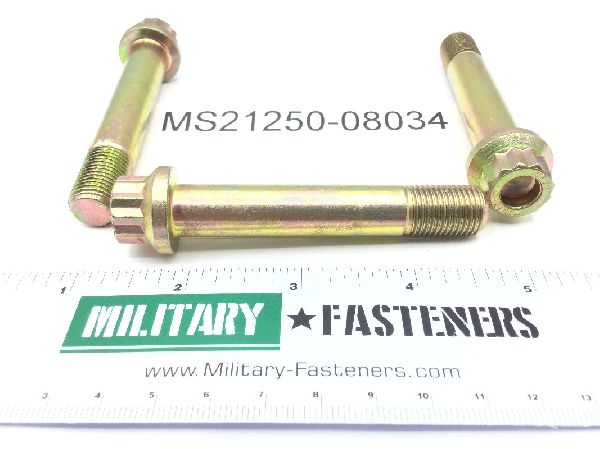

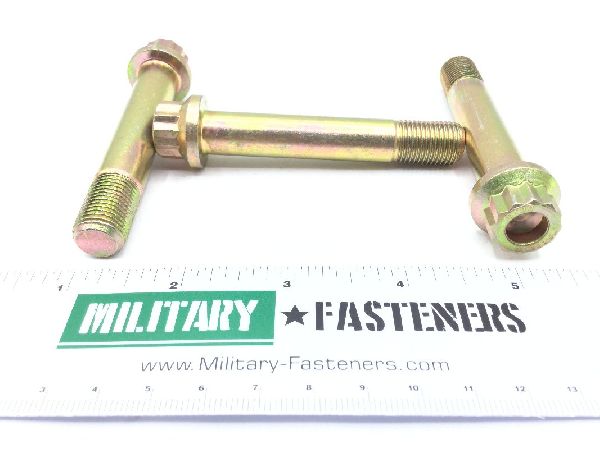

MS21250-08034 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Double hexagon w/hole

Material

Steel comp e4340 or steel comp 4140 or steel comp 8740 or steel comp 6150

Surface Treatment

Class 2 federal specification all treatment responses type 2 qq-p-416

Thread Class

Extended Washer Diameter: Between 0.818 inches and 0.828 inches
Extended Washer Thickness: Between 0.113 inches and 0.133 inches
Fastener Length: Between 2.903 inches and 2.923 inches
Grip Diameter: Between 0.4985 inches and 0.4995 inches
Grip Length: Between 2.115 inches and 2.135 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: Between 0.494 inches and 0.514 inches
Min. Tensile Strength (psi): 180000 pounds per square inch
Thread Diameter: 0.500 inches
Thread Direction: Right-hand
Thread Length: Between 0.768 inches and 0.808 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.553 inches and 0.573 inches
