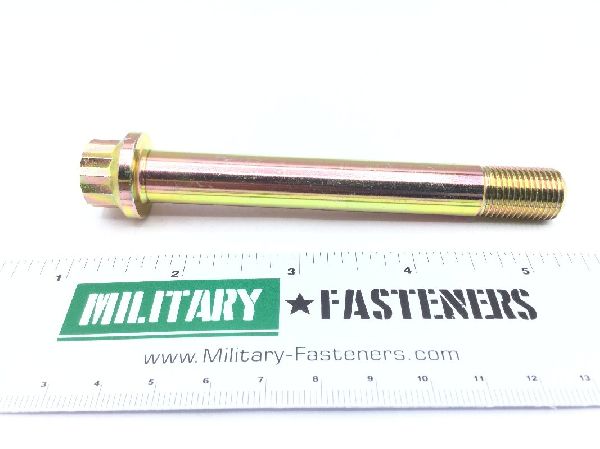

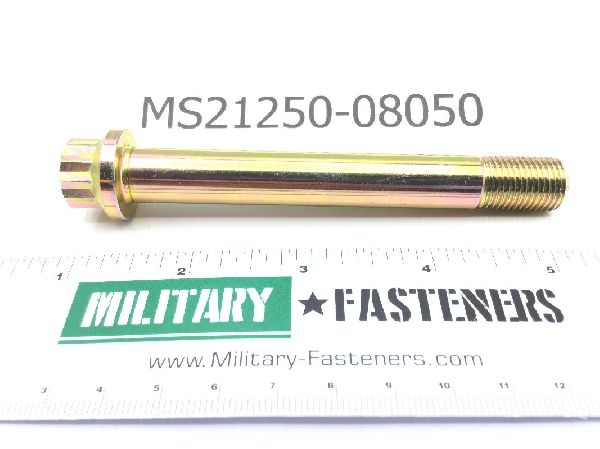

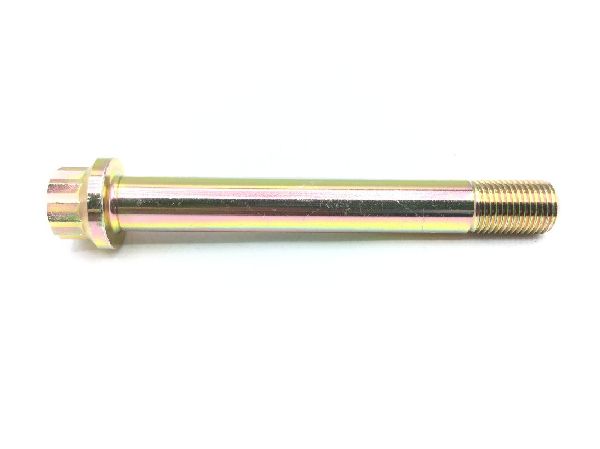

MS21250-08050 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $45.66

Units per Pack 1

Price per Pack $45.66

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $45.66

Add item to quote

Head Style

Double hexagon with hole

Material

Steel comp

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification all treatment responses

Thread Class

Extended Washer Diameter: Between 0.818 inches and 0.828 inches
Extended Washer Thickness: 0.123 inches
Fastener Length: 3.913 inches
Grip Diameter: Between 0.4985 inches and 0.4995 inches
Grip Length: 3.125 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.504 inches
Min. Tensile Strength (psi): 180000 pounds per square inch
Thread Diameter: 0.500 inches
Thread Direction: Right-hand
Thread Length: 0.768 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.553 inches and 0.564 inches
