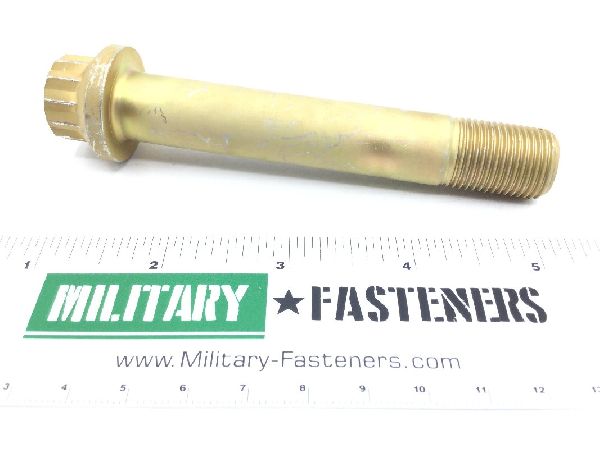

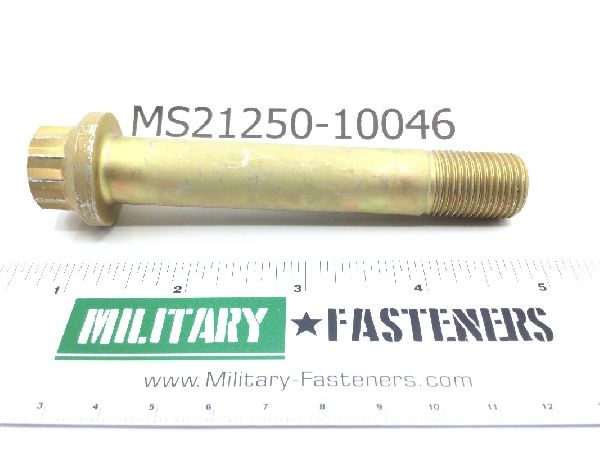

MS21250-10046 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Spline extended washer

Material

Steel comp 4140 or steel comp e4340 or steel comp 8740 or steel comp 6150

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

Extended Washer Diameter: Between 1.153 inches and 1.163 inches
Extended Washer Thickness: Between 0.080 inches and 0.100 inches
Fastener Length: Between 3.785 inches and 3.815 inches
Grip Diameter: Between 0.6230 inches and 0.6240 inches
Grip Length: Between 2.865 inches and 2.885 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: Between 0.552 inches and 0.572 inches
Head Minor Diameter: Between 0.673 inches and 0.688 inches
Min. Tensile Strength (psi): 180000 pounds per square inch
Surface Finish: 32.0 microinches grip
Thread Diameter: 0.625 inches
Thread Direction: Right-hand
Thread Length: Between 0.900 inches and 0.950 inches
Thread Qty Per Inch (tpi): 18
Thread Series Designator: Unjf (fine thread with external controlled root radius)
