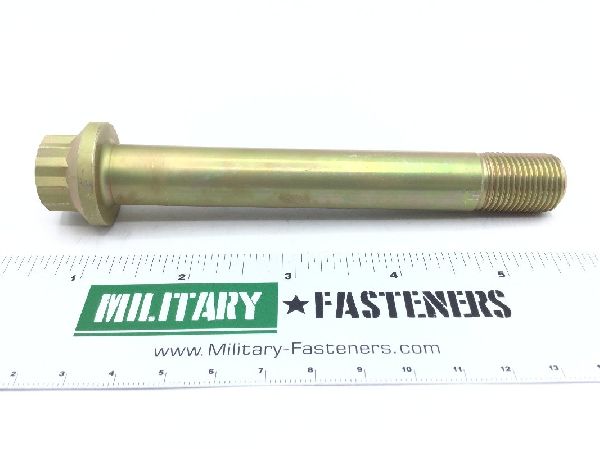

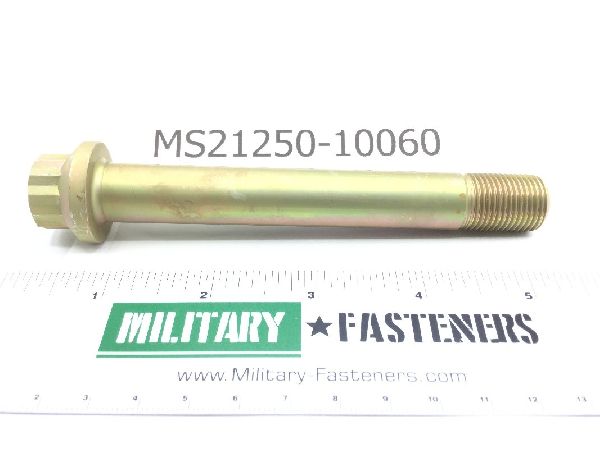

MS21250-10060 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Double hexagon w/hole

Material

Steel

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification all treatment responses

Thread Class

Extended Washer Diameter: Between 1.040 inches and 1.050 inches
Extended Washer Thickness: 0.150 inches
Fastener Length: Between 4.659 inches and 4.679 inches
Grip Diameter: Between 0.6230 inches and 0.6240 inches
Grip Length: Between 3.740 inches and 3.760 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.618 inches
Material Specification: Mil-s-6049 military specification 1st material response or mil-s-5626 military specification 2nd material response or mil-s-5000 military specification 3rd material response or mil-s-8503 military specification 4th material response
Min. Tensile Strength (psi): 180000 pounds per square inch
Thread Diameter: 0.625 inches
Thread Direction: Right-hand
Thread Length: Between 0.899 inches and 0.939 inches
Thread Qty Per Inch (tpi): 18
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.679 inches and 0.690 inches
