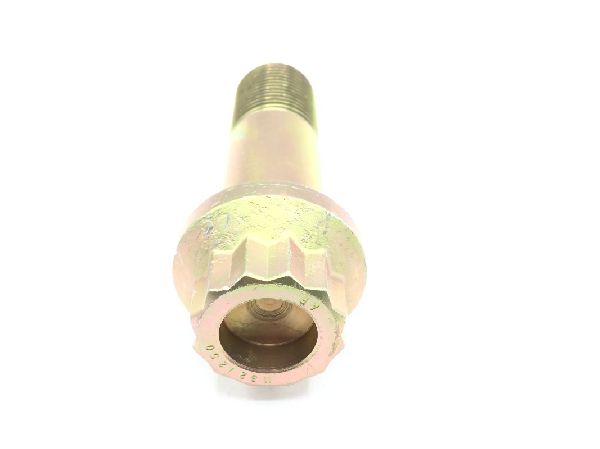

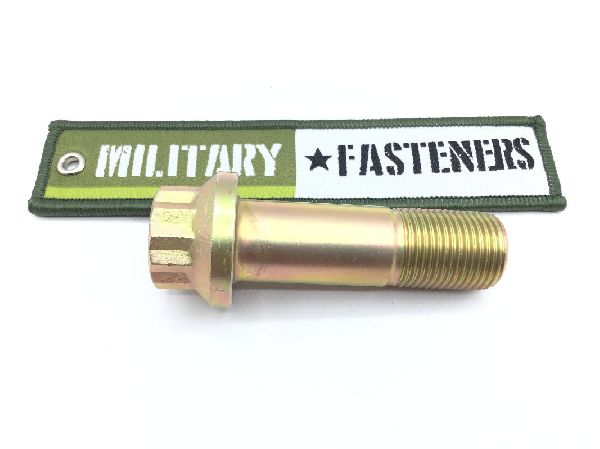

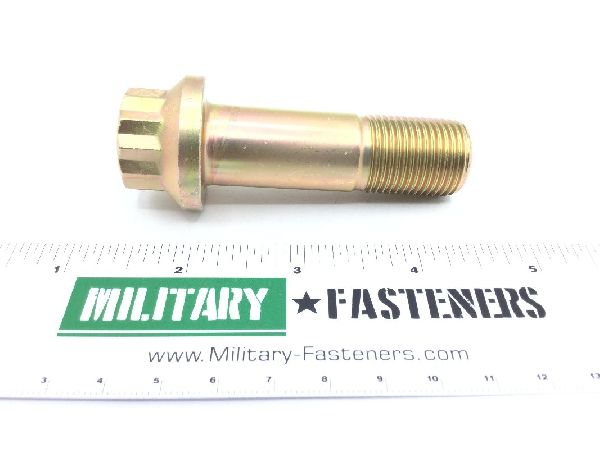

MS21250-12022 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $110.81

Units per Pack 1

Price per Pack $110.81

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $110.81

Add item to quote

Head Style

Double hexagon

Material

Steel comp

Surface Treatment

Qq-p-416 type 2 cl 2 federal specification single treatment response

Thread Class

Extended Washer Diameter: Between 1.220 inches and 1.230 inches
Extended Washer Thickness: Between 0.168 inches and 0.188 inches
Fastener Length: Between 2.421 inches and 2.441 inches
Grip Diameter: Between 0.7480 inches and 0.7490 inches
Grip Length: Between 1.365 inches and 1.385 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: Between 0.701 inches and 0.721 inches
Material Specification: Mil-s-5626 military specification 1st material response or mil-s-5000 military specification 2nd material response or mil-s-6049 military specification 3rd material response or mil-s-8503 military specification 4th material response
Min. Tensile Strength (psi): 180000 pounds per square inch
Surface Finish: 32.0 microinches surface of head
Thread Diameter: 0.750 inches
Thread Direction: Right-hand
Thread Length: Between 1.036 inches and 1.076 inches
Thread Qty Per Inch (tpi): 16
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.812 inches
