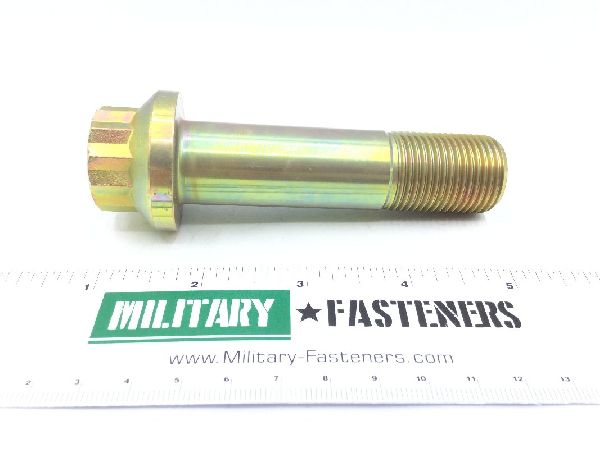

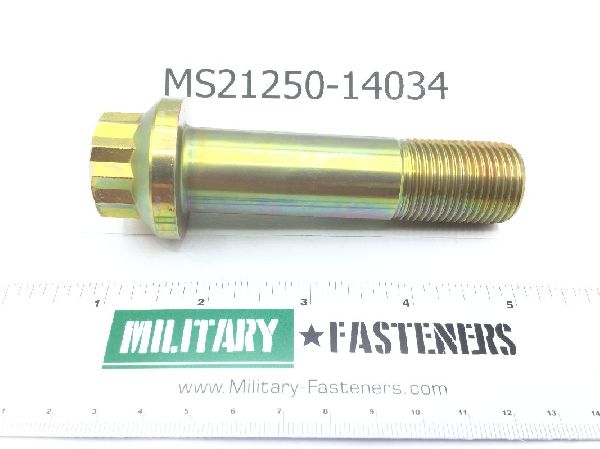

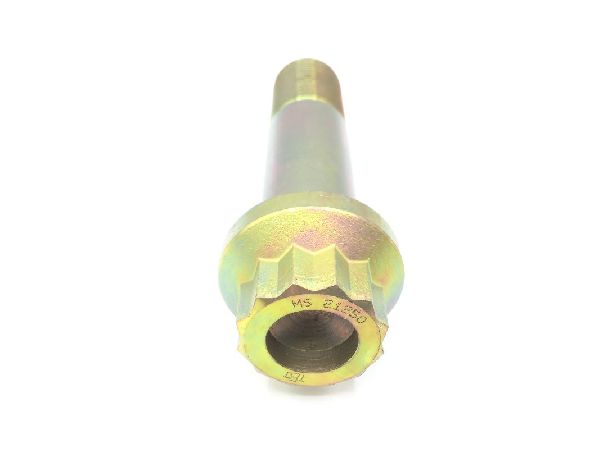

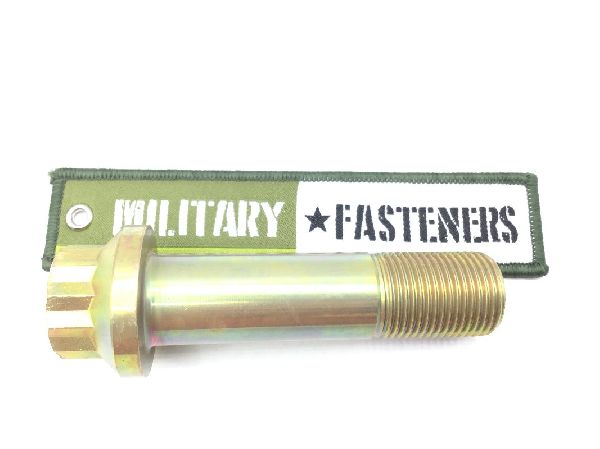

MS21250-14034 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $87.24

Units per Pack 1

Price per Pack $87.24

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $87.24

Add item to quote

Head Style

Double hexagon with hole

Material

Steel

Surface Treatment

Type 2 class 2 federal specification all treatment responses qq-p-416

Thread Class

End Application: Hercules c- hc-130);aircraft ec-130e mc-130h ( ac-130h aircraft
Extended Washer Diameter: Between 1.428 inches and 1.438 inches
Extended Washer Thickness: 0.198 inches
Fastener Length: 3.389 inches
Grip Diameter: Between 0.8730 inches and 0.8740 inches
Grip Length: Between 2.115 inches and 2.135 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.808 inches
Min. Tensile Strength (psi): 180000 pounds per square inch
Thread Diameter: 0.875 inches
Thread Direction: Right-hand
Thread Length: Between 1.254 inches and 1.274 inches
Thread Qty Per Inch (tpi): 14
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.928 inches and 0.940 inches
